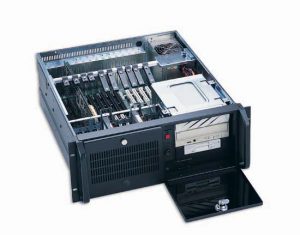

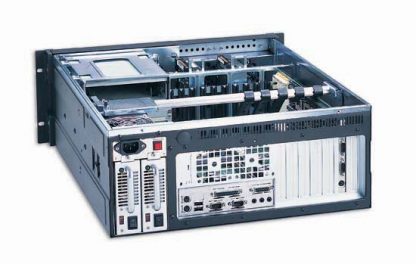

GHI-419ATXR Guanghsing 19″/4U Rackmount


  • Guanghsing 19″ 4U Rackmount Case
  • 7 Slots (GHI-419ATXR), 14/15 Slots (GHI-419SR)
  • 2x USB (Optional), 1x PS/2 Ports for GHI-419SR
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity
  • Washable Air Filter
  • Flexible Hold Down Card
  • Two Doors with Keylock and Thumbscrews



Case dimension483mm W x 510mm D x 177mm H
Motherboard configurationEATX  (Max. 12" x 13") SSI EEB 3.0
Drive configuration
  • 2 x 5.25"

  • 1 x 3.5" FDD

  • 5 x 3.5" HDD

  • 1 x 3.5" HDD (Optional)

System cooling fans2x (90mm = 51CFM ea.), 2x 6cm (Optional)
Gross Weight17.8kgs/39.3lbs
Optional Power Supply400W-700W (PS/2 Size Single up to 700W) or MRW-5450V (Mini Redundant PSU up to 500W) (Rear Installation), Max. Depth 300mm
Optional KitsTelescopic SlidersHDD BracketUSB
