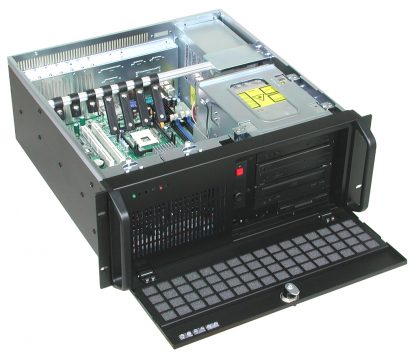

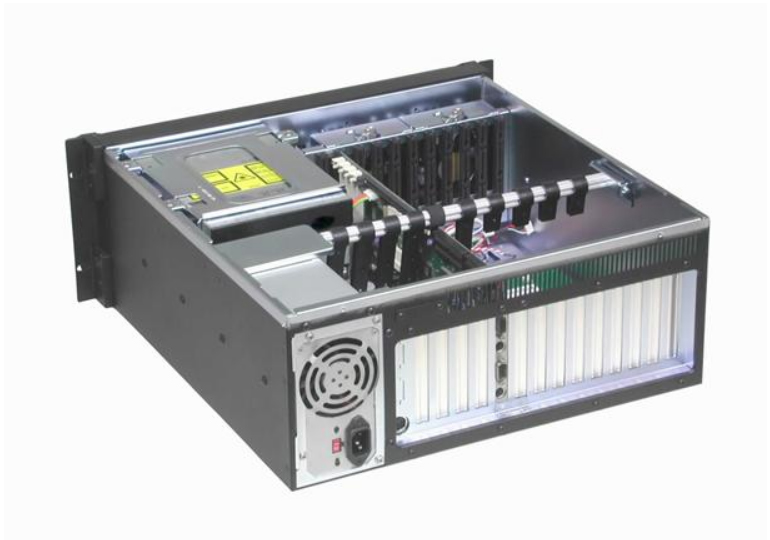

GHI-403ATXR Guanghsing 19″/4U Rackmount


  • Guanghsing 19″ 4U Rackmount Case
  • 7 Slots (GHI-403ATXR), 14/15 Slots (GHI-403SR)
  • 2x USB (Optional), 1x PS/2 Ports for GHI-403SR
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity
  • Washable Air Filter
  • Flexible Hold Down Card
  • Single Door with Thumb Twist Keylock



Case dimension483mm W x 451mm D x 177mm H
Motherboard configurationATX  (Max. 12" x 9.6")
Drive configuration
  • 3 x 5.25"

  • 1 x 3.5" HDD

System cooling fans2x (90mm = 51CFM ea.) Hot Swap
Gross Weight17.2kgs
Optional Power Supply400W-700W (PS/2 Size Single up to 700W) or MRW-5450V (Mini Redundant PSU up to 500W) (Rear Installation), Max. Depth 200mm
Optional KitsTelescopic SlidersUSB
