RM23608 Chenbro 2U Modular Multi-function


  • Chenbro 2U Modular Multi-function Computing & Storage Chassis
  • Support motherboard size up to 12″ x 13″
  • 3 x 80mm hot-swap fans with anti-vibration mechanism
  • Support 2U single and 1+1 redundant PSU



Case dimension660mm W x 430mm D x 88mm H
Motherboard configurationEATX (Max. 12" x 13") SSI EEB 3.0
ProcessorIntel / AMD DP Quad
Support Backplane1 x 8-port, 1 x 12-port or 3 x 8-port 6Gb/s mini-SAS backplane
SecurityIntrusion Switch (option)
Drive configuration
  • RM23508: 8 x 3.5" Hot-swap HDD, 1 x Slim ODD, 2 x 3.5"HDD

  • RM23512: 12 x 3.5" Hot-Swap HDD

  • RM23524: 24 x 2.5" Hot-Swap HDD

Metal MaterialSGCC
Metal Thickness1.2mm
System cooling fans3 x 80mm (T=38mm), PWM, hot-swap
Rear Window7 Low Profile Slot

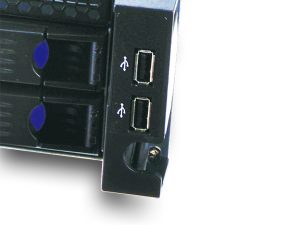

Front PanelPower On/Off, System Reset, Alarm Reset, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, 1 x Fan Failure & Overhead, 2 x USB 2.0
Net Weight/Gross Weight11kg/12.7kg
Optional Power Supply2U Single P2G-6510P or 1+1 Redundant R2G-5600V4V
Optional KitsSFF-8087 to SFF-8087, 40mm fans, 26" Sliding Rail
