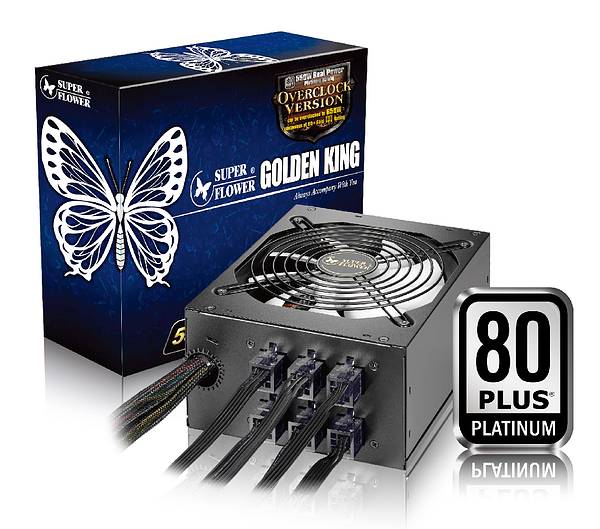

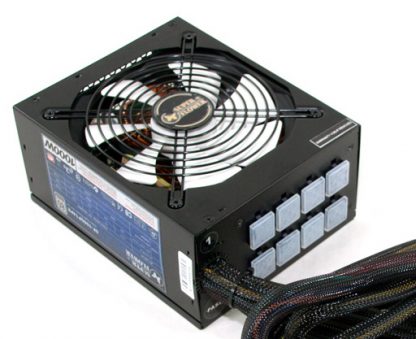

Super Flower SF-1000P14PE ATX

Features:

  • Compliance with ATX 12V v2.2, EPS 12V v2.91 and SSI EPS 12V v2.92 Specification.
  • Support all Intel and AMD Multi-Core CPU and its compatible Motherboards, ATX compliant.
  • Fit in with U.S.A Energy Star standards/ EuP(Energy-using Products) instructions : energy consumption during shut off status less than 1W.
  • Over Power Protection / Under Power Protection / Over Voltage Protection / Short Circuit Protection.
  • Passed 80 PLUS® Platinum Certification, on 20% 50% 100% loading, with 91% 92% 90% Efficiency.
  • Three Exclusive Patents (Taiwan, China, U.S.A, Germany, Japan patent applied)

1.ECO Intelligent Thermal Control System
2.Hybrid Dual Voltage Automatic Switch System
3.High Power Vertical Double Layer Main Transformer(China Patent no:ZL2009 2 0273193.2 ; Taiwan Patent no:M381155 )

  • More than 2,000 Times ON / OFF Test.
  • Full Range Design from 100V ~ 250V. (Active PFC).
  • Support NVIDIA (SLI)/ATI, high rank & high efficiency graphic card.
  • Patent easy plug-in design, safe and firmly attached once connected.
  • 1000W Active PFC
  • 14cm Silent Blue LED Fan with temperature control
  • Dimensions : 150mm W x 180mm D x 86mm H
  • Press: Jonnyguru, Techpowerup, Nikkitech (English)
Categories: , Tag:

Description

Output Connectors:
1 x 20/24PIN
1 x 8 PIN (4+4)
2 x 6 PIN PCI-E
12 x SATA
6 x Molex
1 x Floppy
4 x 8 PIN (6+2)
1 x 8 PIN

Specifications:

  • Transform Efficiency: On 20% 50% 100% loading, with 91% 92% 90% Transform Efficiency
  • AC Input: 115Vac~ 240Vac 10A 60HZ/50Hz
  • Intel Power Design Guide: EPS Ver. 2.92
  • Outlook: Honeycomb ventilation panel, high efficiency air flow design
VOLTAGE
+3.3V
+5V
+12V1
-12V
+5Vsb
MAX. LOAD
20.0A
20.0A
45.5A
0.5A
2.5A

Remarks:

* The total output for +5V and +3.3V is limited to under 100W.
* Peak to 650W.

Safety:

  • BSMI R33529 / CE / FCC / CUL / cTUVus / CB
