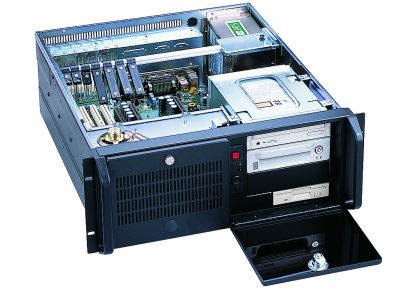

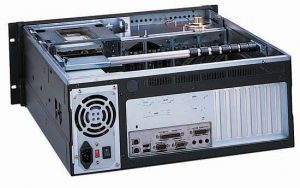

GH-414ATXR Guanghsing 19″/4U Rackmount


  • Guanghsing 19″ 4U Rackmount Case
  • 7 Slots (GH-414ATXR), 14/15 Slots (GH-414SR)
  • 2x USB (Optional), 1x PS/2 Ports for GH-414SR
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity
  • Washable Air Filter
  • Flexible Hold Down Card
  • Two Doors with Keylock and Thumbscrews



Case dimension480mm W x 510mm D x 177mm H
Motherboard configurationATX  (Max. 12" x 9.6")
Drive configuration
  • 3 x 5.25"

  • 1 x 3.5" FDD

  • 1 x 3.5" HDD (Optional)

System cooling fans1x (120mm = 108CFM ea.), One optional opening for extra 120mm fan
Gross Weight17.4kgs/38.4lbs
Optional Power Supply400W-700W (PS/2 Size Single up to 700W) or MRW-5450V (Mini Redundant PSU up to 500W) (Rear Installation), Max. Depth 220mm
Optional KitsTelescopic Sliders, HDD Bracket, USB
