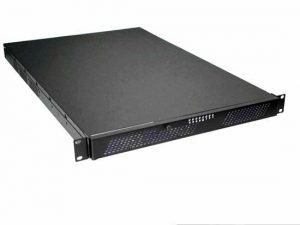

GHI-180 Guanghsing 19″/1U Rackmount

Features:

  • Guanghsing 19″ 1U Rackmount Case
  • 1 Horizontal PCI Slot (With Riser Card)
  • 2x USB
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity, Fans, Temperature
Categories: , Tags: ,

Description

Specifications:

Case dimension483mm W x 650mm D x 44mm H
Motherboard configurationEATX (Max. to 12" x 13") SSI EEB 3.0
Standard I/O ShieldIntel VC820/CA810E
Drive configuration
SATA Backplane (Standard)
  • 1 x  Slim 5.25"

  • 1 x  Slim 3.5" FDD

  • 4 x 3.5" Swappable Trays
System cooling fans6x (40 x 28mm = 15.3CFM ea.)
Riser CardGHP-R0110
Gross Weight12.8kgs/28.2lbs
Optional Power SupplyP1G-6300P (1U Size Single up to 400W) (Mid Installation), Max. Depth 225mm
Optional KitsTelescopic Sliders, Riser Card
