RM417 Chenbro 19″/4U Modular Double Access


  • Chenbro 4U Modular Double Access Storage Server Chassis
  • Modular design on 2.5″, 3.5″ hard drive cage and motherboard tray
  • Front and rear side hard drive cage installation
  • Versatile front device configuration via 4 types of modular cages



Case dimension432mm W x 698mm D x 176mm H
Motherboard configurationEATX (Max. 12" x 13") SSI EEB 3.0
ProcessorIntel / AMD DP Quad

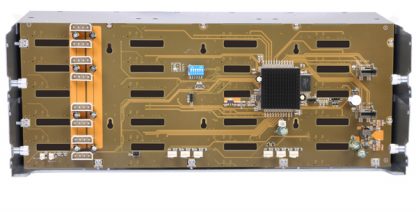

Support Backplane6Gb/s Mini-SAS w/Expander
SecurityIntrusion Switch
Drive configuration
  • 36 x Hot Swap 3.5" 3.5" 12-Bay,6Gb/s Mini-SAS BP w/Expander 3.5" 24-Bay,6Gb/s Mini-SAS BP w/Expander or

  • 72 x Hot Swap 2.5" 2.5" 3 x 24-Bay,6Gb/s Mini-SAS BP w/Expander

Metal MaterialSGCC
Metal Thickness1.2mm
System cooling fans6 x 80mm T38, PWM; Hot Swap, 2 x 40mm (Option)
Rear Window6 Low Profile Slot
Slide Rail27" rail included
Front PanelPower On/Off, System Reset, Alarm Reset, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, Event LED, 2 x USB 2.0
Net Weight/Gross Weight42kg/43kg
Optional Power Supply2U or 1+1 Redundant
Optional KitsSFF-8087 to SFF-8087, 40mm fans, 27" Sliding Rails
