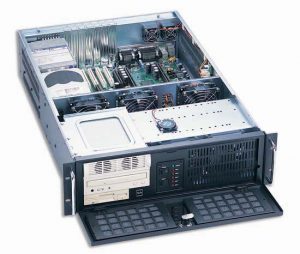

GHI-312 Guanghsing 19″/3U Rackmount


  • Guanghsing 19″ 3U Rackmount Case
  • 7 Slots
  • 2x USB
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity



Case dimension483mm W x 650mm D x 133mm H
Motherboard configurationEATX  (Max. 12" x 13") SSI EEB 3.0
Drive configuration
  • 2 x 5.25"ODD

  • 1 x 3.5" FDD

  • 7 x 3.5" HDD

System cooling fans5x (92mm = 51CFM ea.), 1x (60mm = 23.5CFM ea.)
Gross Weight17.2kgs
Optional Power SupplyP2G-6510P  (2U Single up to 700W) or R2G-5500V (2U Redundant up to 500W) (Rear Installation), Max Depth 300mm
Optional KitsTelescopic Sliders
