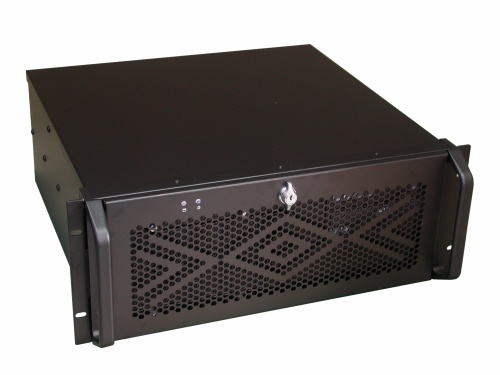

GHI-404A Guanghsing 19″/4U Rackmount

The Guanghsing GHI-404A is a compact 19″ 4U rackmount case, only 408mm deep, for ATX and E-ATX motherboards.

Features:

  • Guanghsing 19″ 4U Rackmount Case, only 408mm deep
  • Supports ATX / EATX motherboards up to 12″ x 13″ (SSI EEB 3.0)
  • 2 x 5.25″ external and 1 x 2.5″ hidden drive bay
  • 2 x 90mm fans, 2 x 60mm fans optional
  • 2x USB, Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity
  • Washable Air Filter
  • Flexible Hold Down Bar
  • Single Door with Thumb Twist Keylock

Description

Specifications:

Case dimension483mm W x 408mm D x 177mm H (19.0" x 16.1" x 7.0")
Motherboard configurationATX / EATX M/B (Max. 12" x 13", SSI EEB 3.0)
Drive configuration
  • 2 x 5.25" external
  • 1 x 2.5" HDD (hidden)
System cooling fans2 x 90mm (51.0 CFM each), 2 x 60mm (23.5 CFM each, optional)
Front PanelPower On/Off, System Reset, 2 x USB, LEDs for Power and HDD Activity
Front DoorSingle door with thumb twist keylock, washable air filter inside front panel
ConstructionHeavy duty cold rolled steel, EIA RS-310C 19" standard, color: black (standard), beige or custom
Gross Weight14.7 kgs / 32.4 lbs
Optional Power SupplyPS/2 single or mini redundant ATX PSU (rear installation), max. depth 180mm
Optional KitsTelescopic Sliders
Humidity5% – 95% non-condensing
