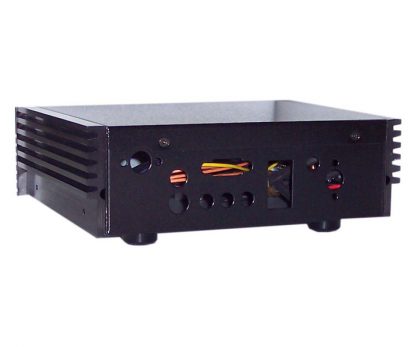

GN-L01 Serener Mini ITX Fanless


  • Silent operation with fanless solution
  • Steel Chassis, Aluminium Front
  • Support VIA Nano motherboard
  • No Heatpipe
  • Ideal for industrial case, embedded appliaction and shady system
  • Passive cooling technology is applied with optimizing heat-dissipation area to control system temperature
  • Excellent performance in dust even grease predominated environment due to no ventilation



Case dimension197.4mm W x 156mm D x 60mm H
Motherboard configurationVia Nano MB
Drive configuration
  • 1 x Slim CD-R

  • 1 x 2.5" HDD
Front AccessPower Button, Slimline CD/DVD drive, 2x USB 2.0, LAN, Audio, TV-Out, PS2
Power SupplyBuilt-in DC-DC board 12V, 90W, GP-87
Adaptor60W (AC 100-240V, DC 12V @5A)
Net Weight / Gross Weight1.9kg / 2.2kg
Heatpipe OptionsHP8 (included)
