YY-7301 Slim Desktop

The Yeong Yang YY-7301 slim desktop case is a compact 12L SFF chassis for Micro ATX and DTX motherboards with mesh front panel, 4 drive bays and optional USB 3.0 front ports.

Features:

  • Compact 11.35L
  • Screwless Designed with quick fasteners, make system assembly easy and quick.
  • Standard Allow standard sized devices
  • Cable planning
    The reserved cable tunnel may hide cable mess and promote the efficiency of system assembly and thermal ability Quiet / Optimum Thermal Efficiency
    —
    All New Air Flow Design – Partition air guide, more efficiency, not only for Core area, but also for devices and add-on-cards

YY-73 Series – more front panel designs

The YY-7301 shares its 12L slim SFF chassis (Micro ATX / DTX, TFX PSU) with five other front panel versions: YY-7302, YY-7303, YY-7304, YY-7305 and YY-7306. YY-7301 is in stock – all other versions are available on request. Click an image to enlarge it.

YY-7301 Yeong Yang 12L SFF slim case – black mesh frontYY-7301Black mesh frontIn stock
YY-7302 Yeong Yang 12L SFF slim case – vent strip frontYY-7302Vent strip frontOn request
YY-7303 Yeong Yang 12L SFF slim case – two-tone shutter frontYY-7303Two-tone shutter frontOn request
YY-7304 Yeong Yang 12L SFF slim case – black front, chrome buttonYY-7304Black front, chrome buttonOn request
YY-7305 Yeong Yang 12L SFF slim case – brushed-look frontYY-7305Brushed-look frontOn request
YY-7306 Yeong Yang 12L SFF slim case – fence pattern frontYY-7306Fence pattern frontOn request

Request another version

Description

Specifications:

Case dimension333mm W x 383mm D x 96mm H (13.1" x 15.2" x 3.8")
Without bezel: 333mm W x 358mm D x 96mm H
Motherboard configurationMicro ATX (9.6" x 9.6"), DTX
Drive configuration
  • 1 x 5.25" exposed for standard ODD (180mm max. depth)

  • 1 x 3.5" exposed for card reader only (120mm max. depth)

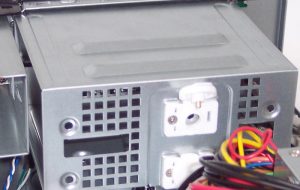

  • 2 x 3.5" hidden for standard HDD
Slots4 x Low Profile expansion slots
Front PanelPower switch, Power LED, HDD LED
2 x USB 2.0 + HD Audio, 2 x USB 3.1 Gen 1 (option)
Optional system cooling fans1 x 80mm (8015) front-mounted fan
MaterialsSteel chassis, recyclable materials; flame retardant plastic parts and front bezel (HB)
ColorBlack chassis / black bezel with black mesh
EmissionsDesigned to meet FCC Class B (47 CFR Part 15) / CISPR 22
Net Weight/ Gross Weight3.2kg/4.1kg
Optional Power SupplyTFX PSU 250W – 300W
Options80mm fan, foot stand, intrusion switch, multi-in-one card reader, internal speaker + amp PCB kit
