SR10566 Chenbro Server Chassis

Features:

  • Support up to 12″x13″ M/B

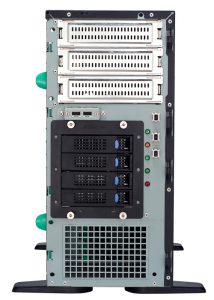

  • 3.5″ 4-Bay HDD cages with 12Gb/s SATA or mini-SAS backplane
  • Tool-less installation on bezel, HDD cage, side cover and fans

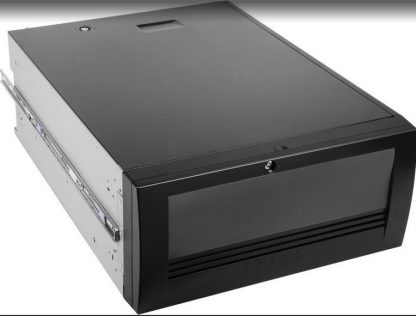

  • Rackable by slide rail- SR10566
Categories: ,

Description

General Purpose Server Chassis

Specifications:

Case dimension198mm (W) x 533mm (D) x 425mm (H)
Motherboard configurationATX / Extended ATX, EEB
ProcessorIntel / AMD DP Quad
SecurityIntrusion Switch, Kensington Lock, Keylock on front door
Drive configuration
  • 3 x 5.25" exposed

  • 4 x 3.5" HDD Cage (Optional)
Metal MaterialSECC
Plastic Material TypeABS-HB
Metal Thickness0.8mm
System cooling fans1 x 12cm PWM for rear-mounted (built-in)
1 x 8 or 9cm fan for front-mounted
Expansion Slot7 (5 x full length + 2 x half length)
Front PanelPower On/Off, System Reset, Alarm Mute, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, 1 x Event Warning, 2 x USB 3.0
Net Weight/Gross Weight9kg/11.0kg
Optional Power Supply450-1000W (PS/2) or MRW-5500V (Mini Redundant)
Optional Kits84H220910-062 (HDD Cage, 3.5" 4-Bay, Non-Hotswap), 84H220910-087 (HDD Cage, 3.5" 4-Bay, w/12Gb/s Mini-SAS) 84H220910-085 (HDD Cage, 3.5" 4-Bay, w/12Gb/s SATA ), SK33502 (3 x ODD bays to 5 x 3.5" hot-swap HDD bays), SK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SR84H210510-004 Rackmount Handles, 26" Sliding Rail
