SR10766 Chenbro Server Chassis

Features:

  • Supports up to 12” x 13” M/B

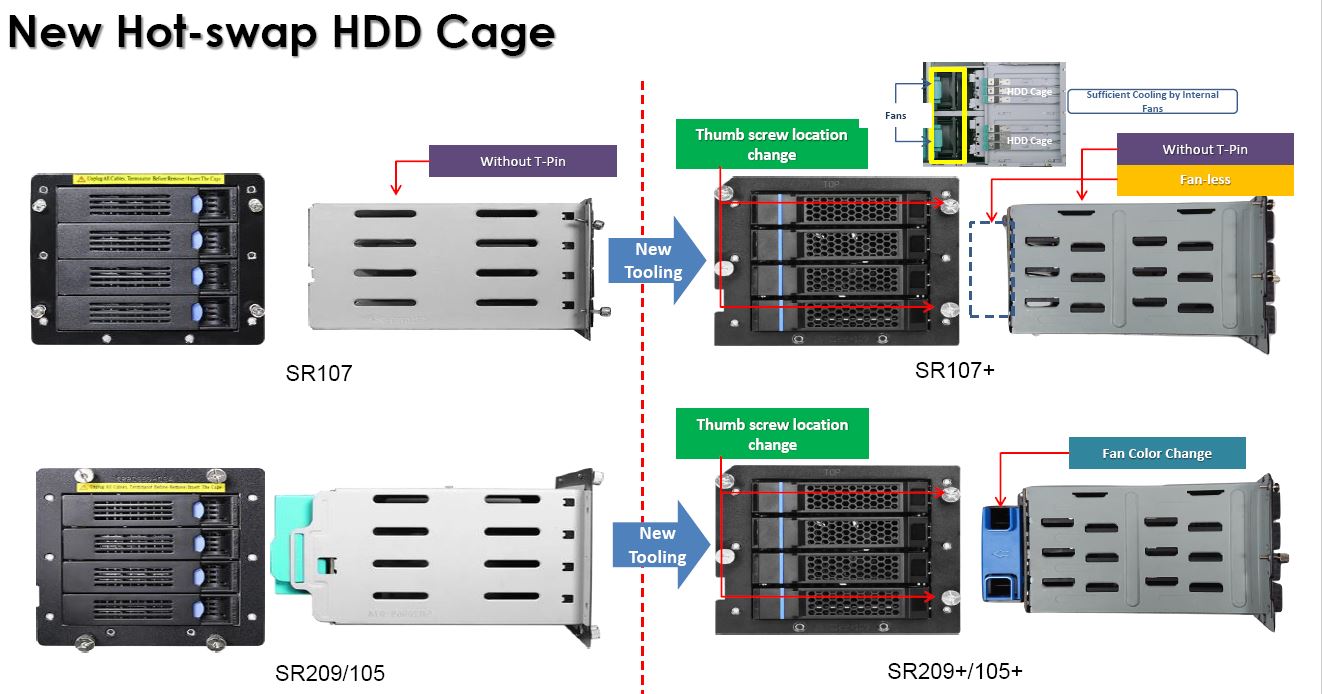

  • Supports two removable 4-bay 3.5″ HDD Hot-swap and internal cages
  • 3.5″ HDD Hot-swap cage with 12Gb/s mini-SAS HD backplane
  • Hot-swap cage with four patented tool-less 3.5″ HDD trays
  • 3.5″ Internal HDD cage with patented anti-vibration technologies
  • Supports up to 3 FH/FL GPU cards
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock for unauthorized access prevention
  • Supports rack installation by slide rails
  • Supports single PS/2 and 1+1 redundant PSU
Categories: ,

Description

High Data Security Server Chassis

Specifications:

M/B Form FactorE-ATX (12” x 13”)
Dimension (D x W x H)620 x 220 x 425 (mm), 24.4” x 8.7” x 16.7” (Bezel not included)
Drive Bay

  • External 5.25": 3

  • External 3.5": 1

  • Hot-swap 3.5": 8

  • Internal 3.5": 8
PSU Form FactorPS/2 Single or 1+1 Redundant
Indicators

  • 1x Power Status

  • 1x HDD Activity

  • 2x LAN Activity

  • 1x Fan Failure and Overheat
Front Control

  • 1x Power On/Off

  • 1x System Reset

  • 1x Alarm Mute

  • 2x USB 3.0
Cooling FanMiddle: 2x 120mm, Rear: 1x 120mm, PWM
System Security

  • 3-wire Intrusion Switch

  • Key lock

  • Kensington slot
Expansion Slot7x Full Height (5x Full Length + 2x Half Length)
Metal Thickness0.8mm
MaterialsSECC
HDD Backplane12Gb/s mini-SAS HD or SAS/SATA
Net Weight18kg
Gross Weight22.5kg
Cubic Feet5.53
Container Info20": 140, 40": 280, 40"H: 336
