Super Flower Leadex V Gold PRO 750W SF-750F14TG V2.0 ATX

Features:

  • 750W continuous output, single +12V rail (62.4A)
  • 80 PLUS Gold certified
  • Fully modular with ultra-flexible flat ribbon cables
  • Patented 9-pin Super Connector: CPU, PCI-E, SATA and Molex cables fit any universal socket

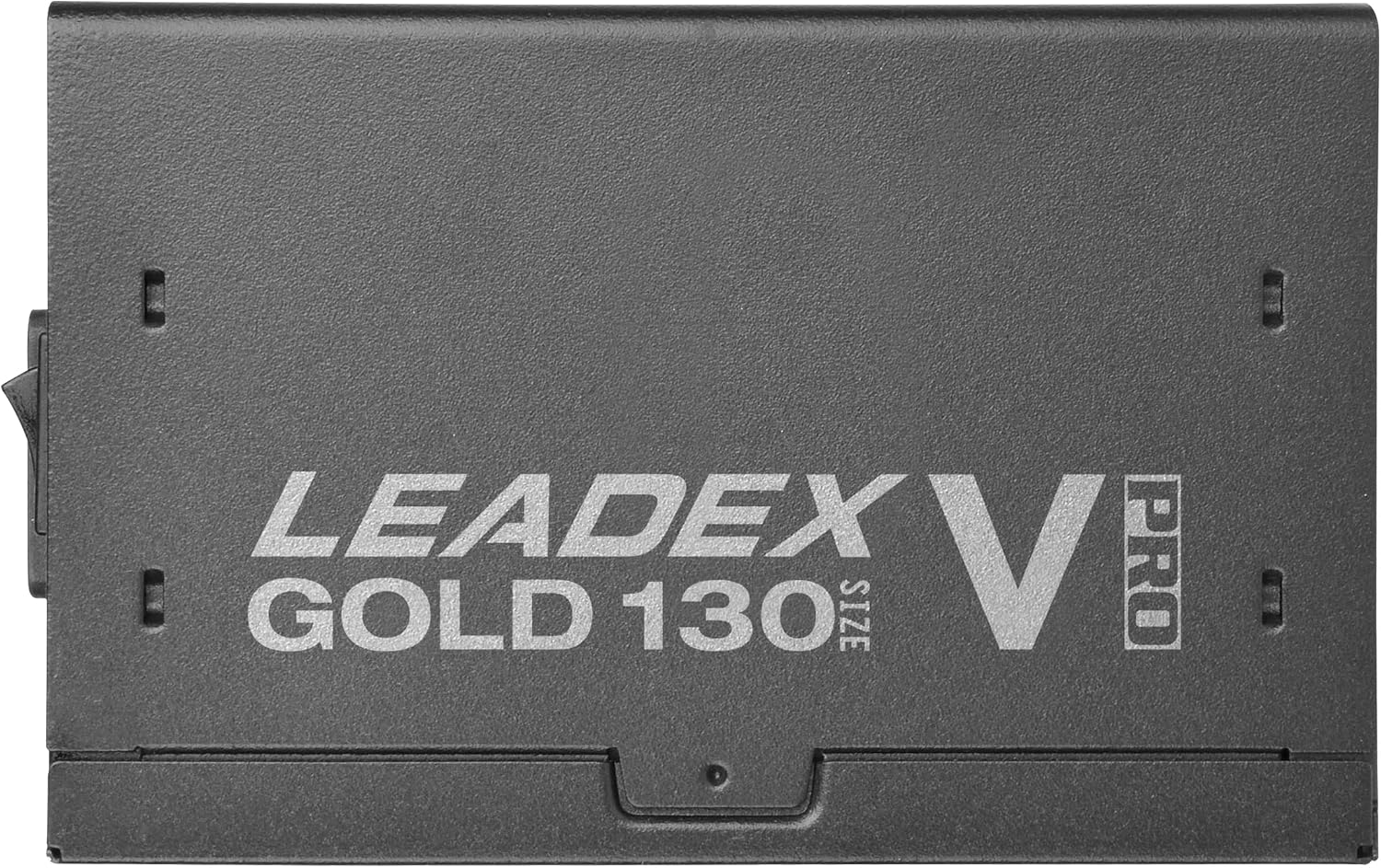

  • Very compact: only 130mm long

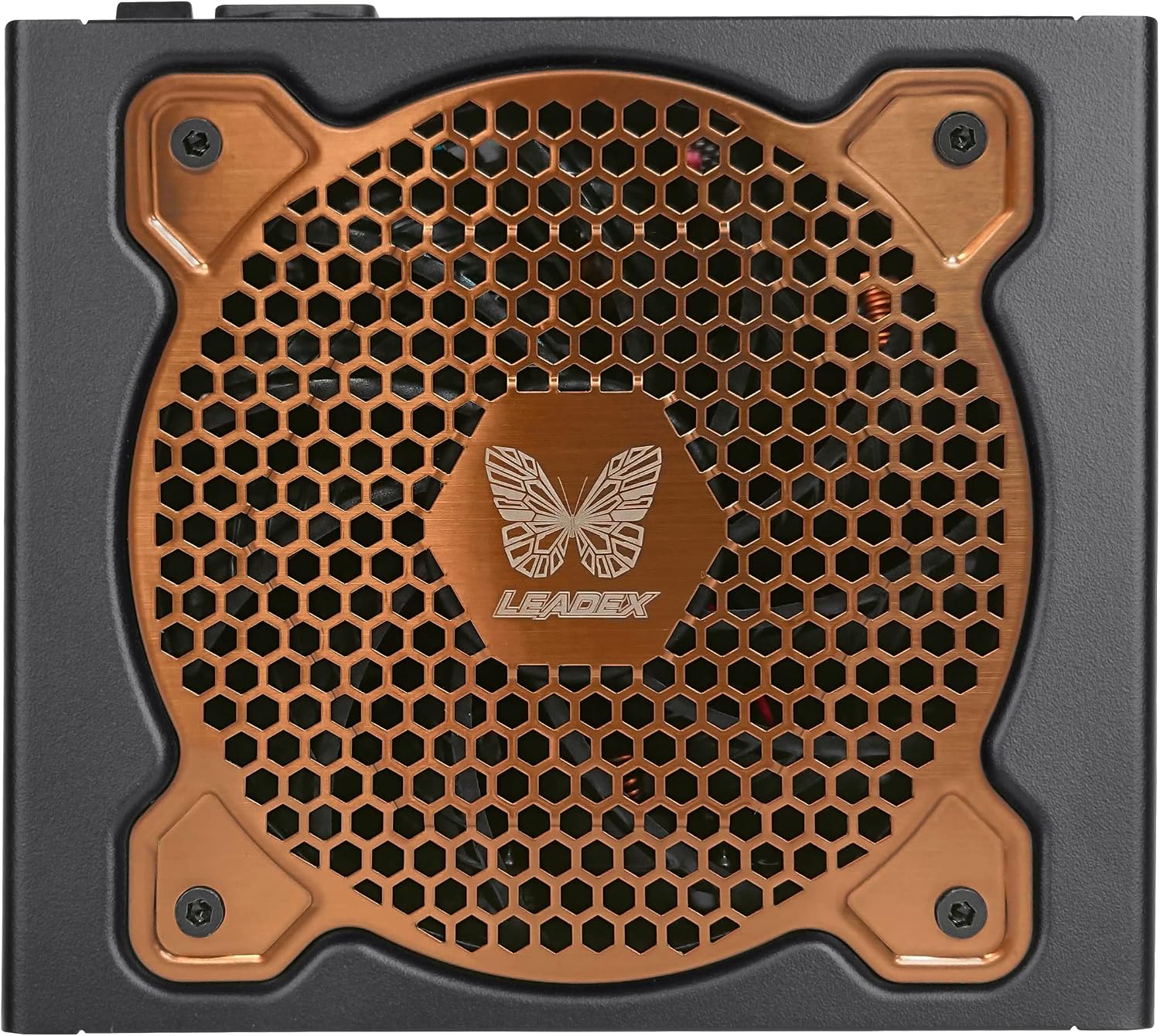

  • 120mm fan with ECO Intelligent mode – fan stops at low temperature

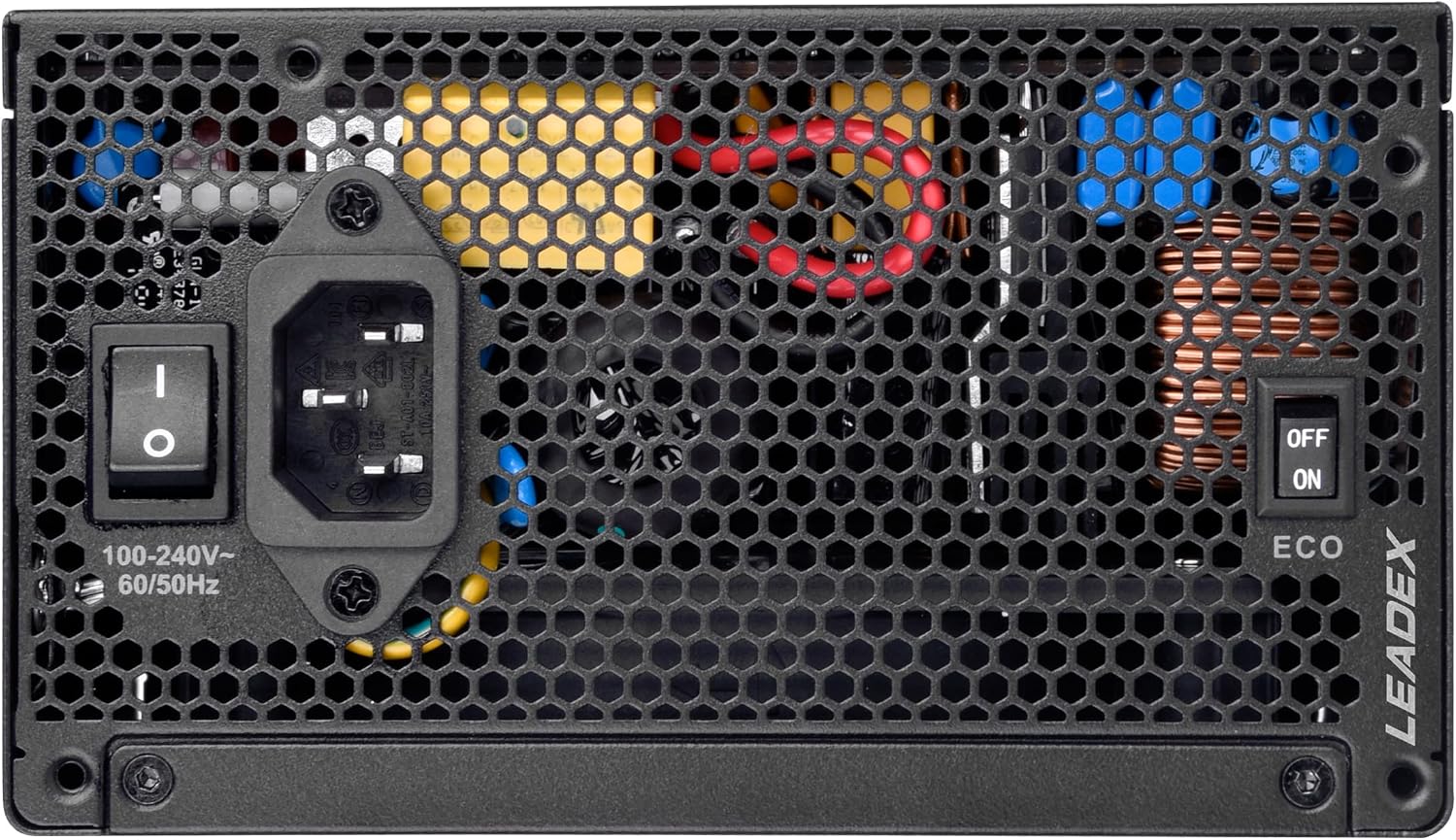

  • Active PFC, 100–240V AC input
SKU: SF-750F14TG V2.0 Category: Tag: Brand:

Description

Super Flower Leadex V Gold PRO 750W (SF-750F14TG V2.0)

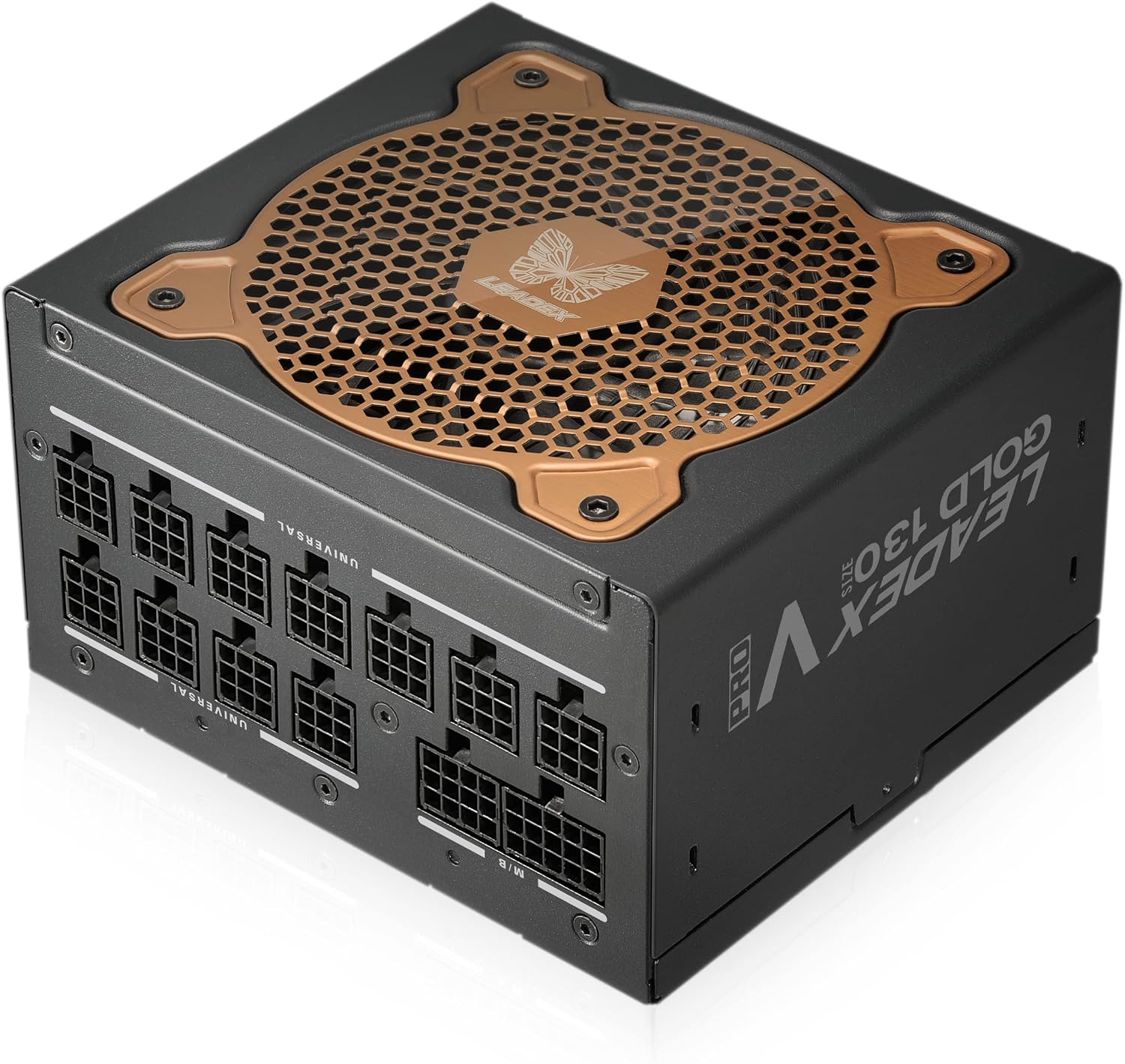

The Super Flower Leadex V Gold PRO 750W is a fully modular 80 PLUS Gold ATX power supply in an exceptionally compact 130mm housing. Its patented 9-pin Super Connector allows CPU, PCI-E, SATA and Molex cables to be plugged into any of the universal sockets, and the flat ribbon cables make cable management easy – ideal for gaming PCs, workstations and compact builds.

Specification

ModelSF-750F14TG V2.0
SeriesLeadex V Gold PRO
Continuous power750W
Efficiency80 PLUS Gold
Form factorATX, 130mm length
ModularFully modular, ultra-flexible flat ribbon cables, 9-pin universal sockets
AC input100–240Vac, 10A, 60/50Hz
TopologyActive PFC, LLC half-bridge with synchronous rectification
Fan120mm, ECO Intelligent mode (fan stop at low temperature)
ProtectionsOver-voltage, short-circuit and over-temperature protection, among others
EAN4711213446450

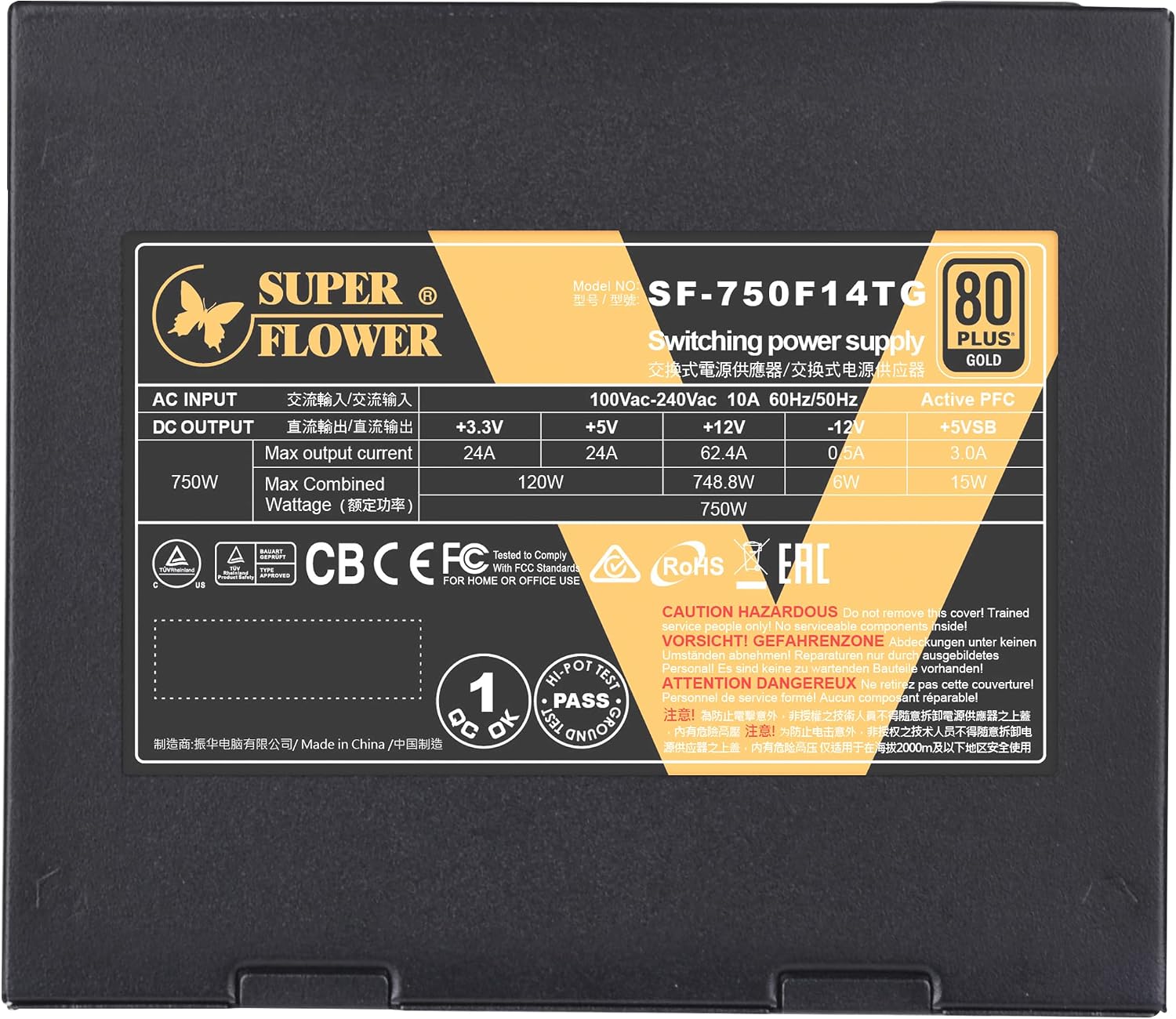

DC Output:

RailMax. currentMax. power
+3.3V24A120W (combined +3.3V / +5V)
+5V24A
+12V62.4A748.8W
-12V0.5A6W
+5VSB3.0A15W
Total750W

Safety:

  • TÜV Rheinland (cTUVus, Bauart) / CB / CE / FCC / RCM / RoHS

Cable

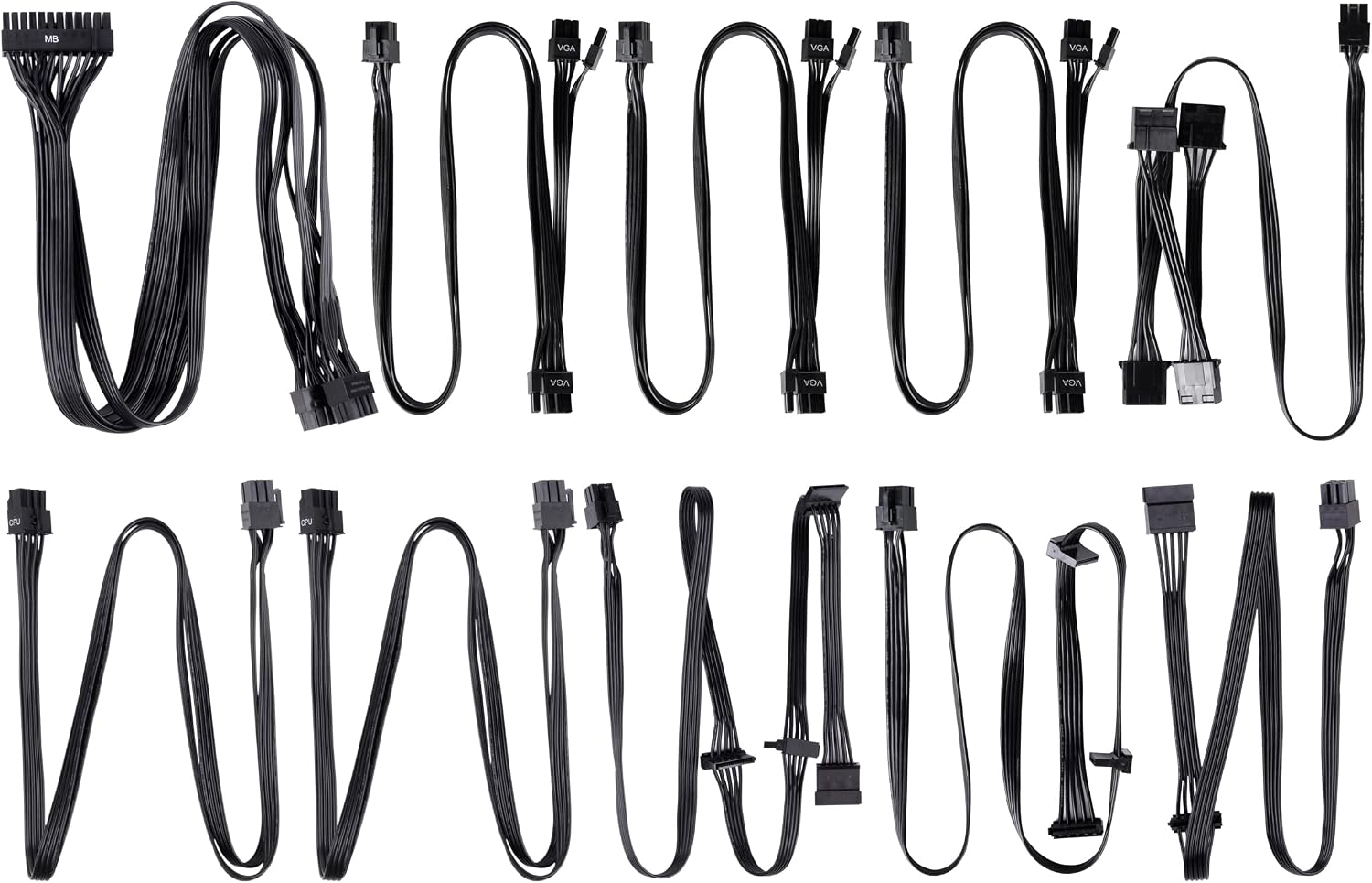

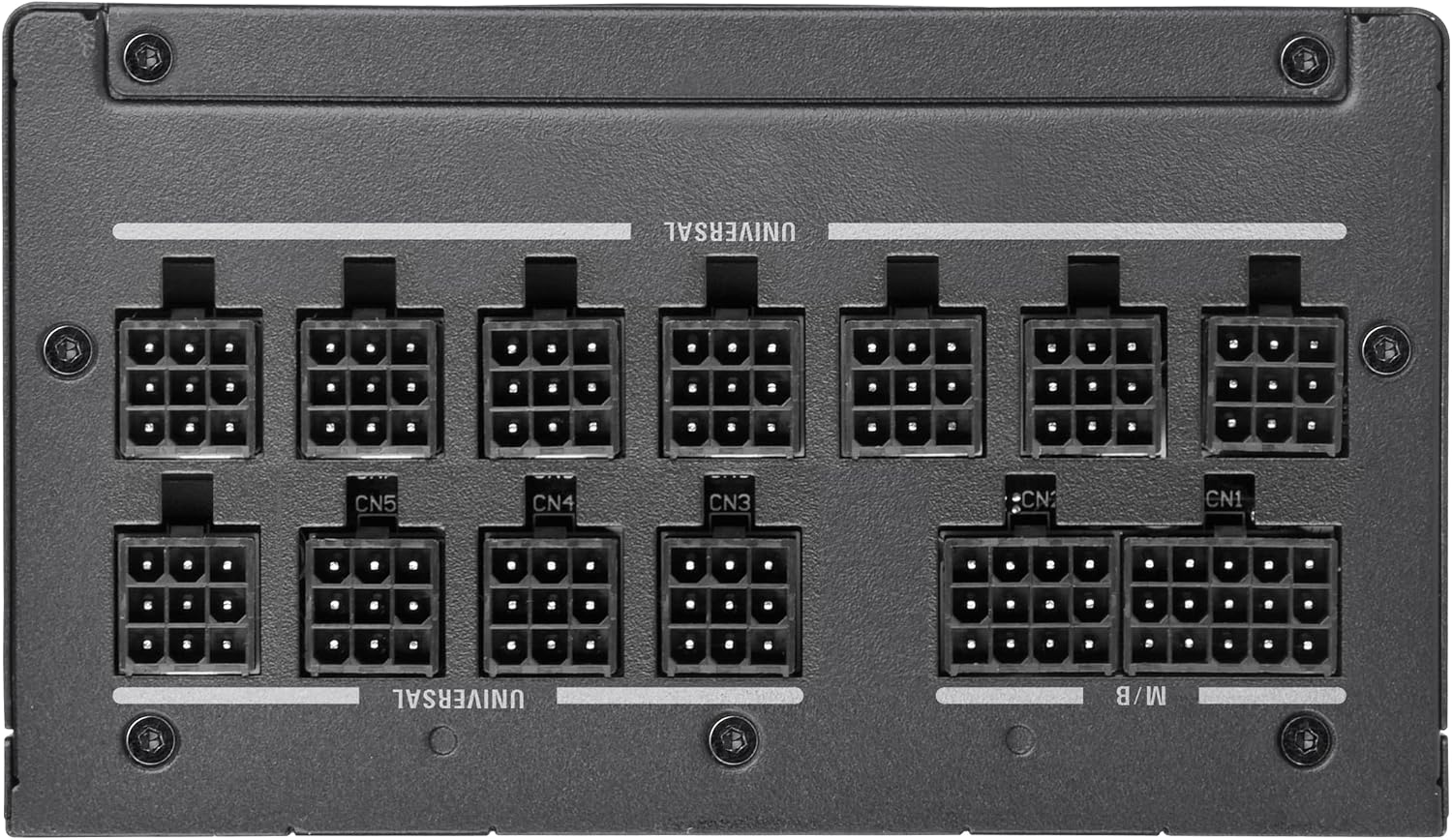

Fully modular – all cables plug into universal 9-pin Super Connector sockets.

Connector type
20+4 pin ATX
4+4 pin CPU (EPS12V)
PCI-E 6+2 pin
SATA
4-pin Molex
