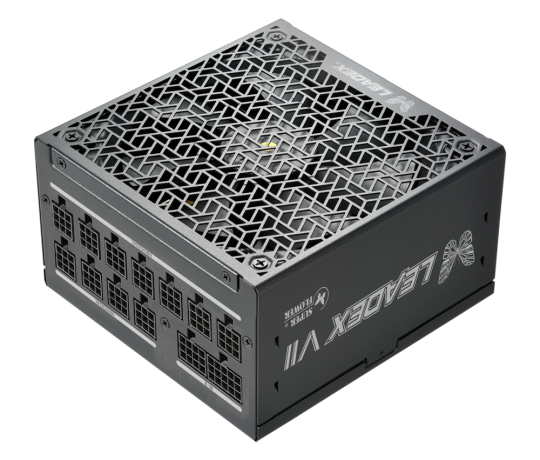

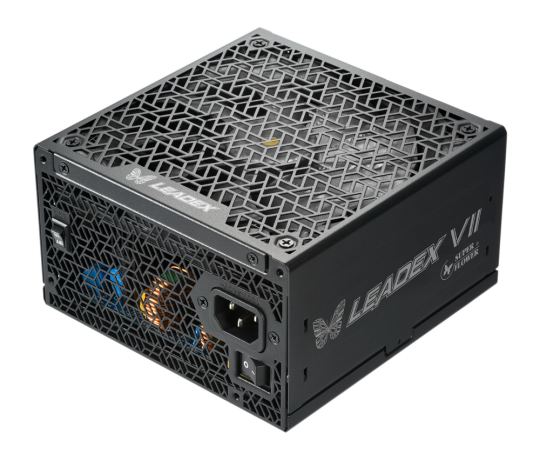

Super Flower Leadex VII Platinum PRO 1000W SF-1000F14XP ATX 3.1

Features:

  • 1000W continuous output, single +12V rail (83.3A)
  • ATX 3.1 and PCIe 5.1 compliant with native 12V-2×6 cable
  • 80 PLUS Platinum and Cybenetics Platinum certified
  • Fully modular with ultra-flexible ribbon cables and universal 9-pin terminals
  • 100% Japanese 105°C capacitors

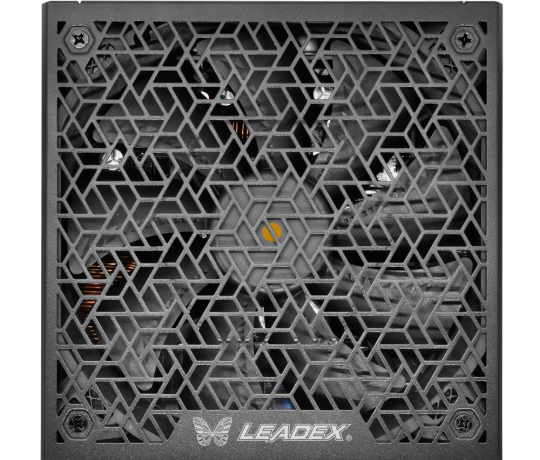

  • 140mm fluid dynamic bearing (FDB) fan with Zero RPM / ECO mode
  • Full-range active PFC, 100–240V AC input
  • Modern Standby compatible
  • Compact dimensions: 150mm L x 150mm W x 86mm H
SKU: SF-1000F14XP Category: Tag: Brand:

Description

Super Flower Leadex VII Platinum PRO 1000W (SF-1000F14XP)

The Super Flower Leadex VII Platinum PRO 1000W (SF-1000F14XP) is a fully modular ATX 3.1 power supply with 80 PLUS Platinum and Cybenetics Platinum certification. With a native 12V-2×6 connector for current graphics cards, a compact 150mm housing and a quiet 140mm FDB fan, it is a strong choice for high-end gaming PCs and workstations.

Specification

ModelSF-1000F14XP
SeriesLeadex VII Platinum PRO
Continuous power1000W
80 PLUSPlatinum – 90% / 92% / 89% at 20% / 50% / 100% load (115V internal)
CybeneticsPlatinum: ≥89% to <91% (115V), ≥91% to <93% (230V)
Intel design guideATX 3.1, EPS 12V v2.92
PCIePCIe 5.1, native 12V-2x6
CPU compatibilityAll Intel / AMD multi-core CPUs, ATX / BTX compatible motherboards

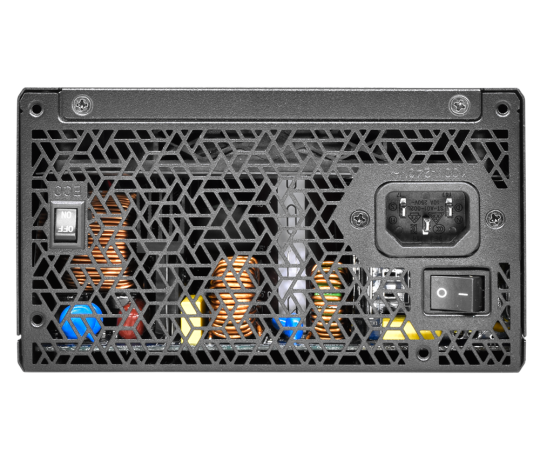

AC input100–240Vac, 15A, 60/50Hz
PFCFull-range active PFC
ModularFully modular, ultra-flexible ribbon cables
Fan140mm ultra-silent fluid dynamic bearing (FDB), Zero RPM / ECO mode
Capacitors100% Japanese 105°C
Operating temperatureTested at 50°C
ProtectionsOVP / OCP / OPP / SCP / UVP / OTP / SIP
Dimensions150mm (L) x 150mm (W) x 86mm (H)
EnvironmentalEnergy Star and EuP compliant
EAN4711213446764

DC Output:

RailMax. currentMax. power
+3.3V20A100W (combined +3.3V / +5V)
+5V20A
+12V83.3A999.6W
-12V0.5A6W
+5VSB2.5A12.5W
Total1000W

Safety:

  • cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC

Cable

ConnectorQuantity
20+4 pin ATX1
4+4 pin CPU (EPS)2
PCI-E 6+2 pin4

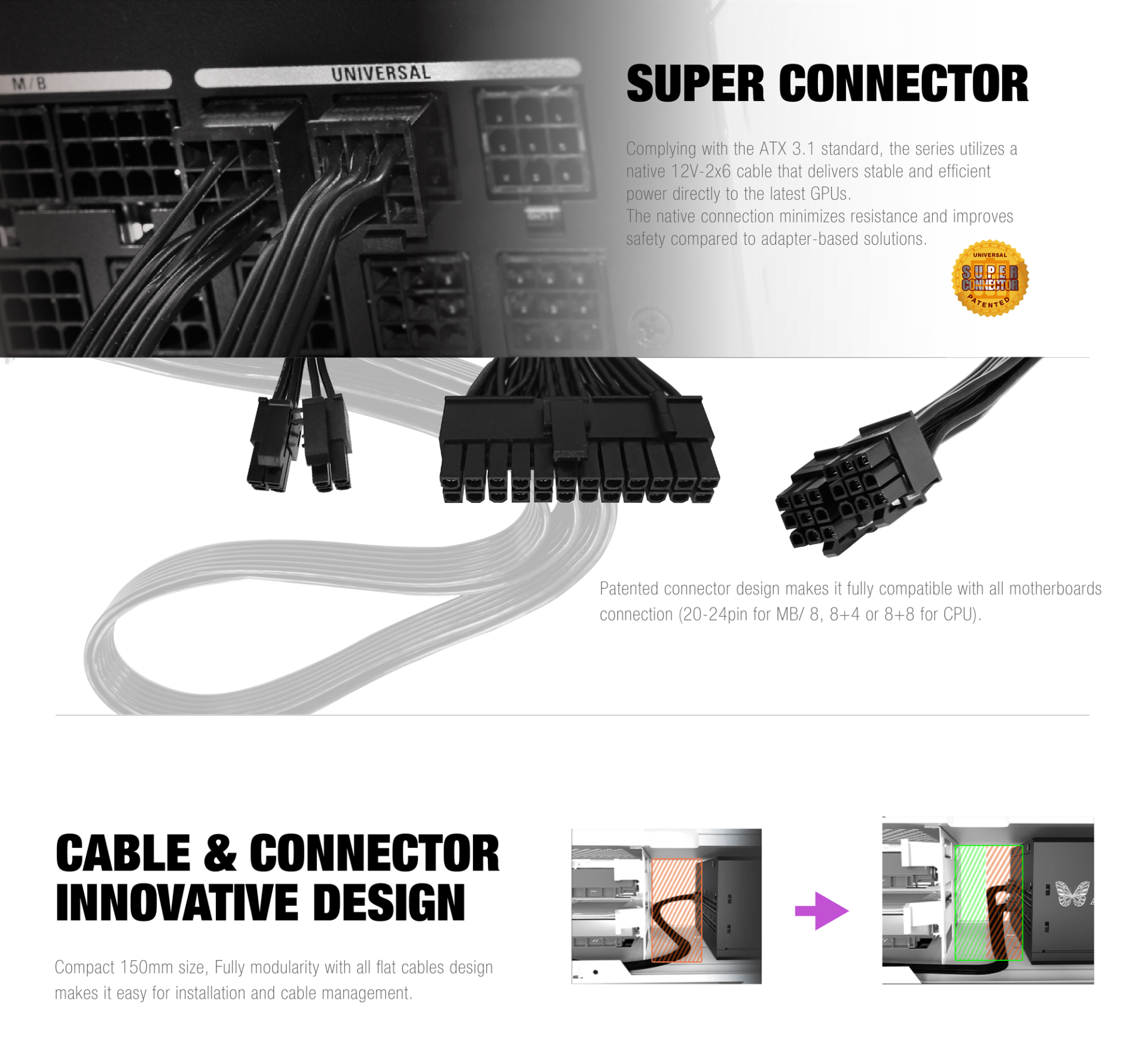

12V-2x6 (9+9 pin to 16 pin, native)1
SATA3 cables (4 connectors each)
4-pin Molex1 cable (4 connectors)

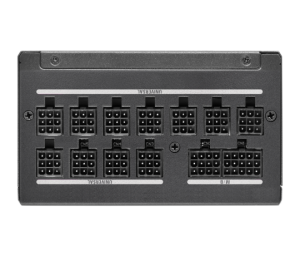

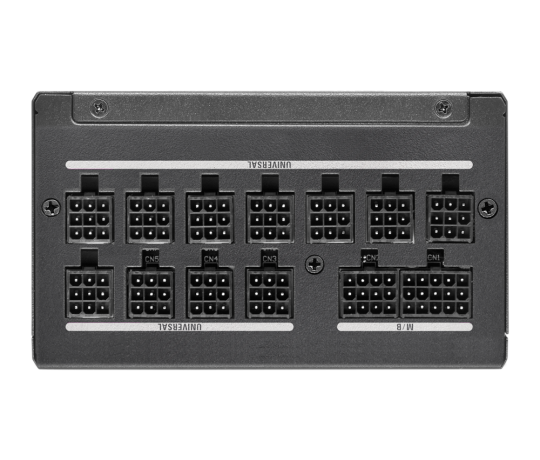

All PSU-side sockets are universal 9-pin terminals.
