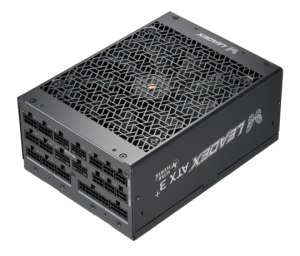

The Super Flower Leadex Titanium 2800W (SF-2800F14HP) is the top model of the Leadex Titanium series. With 2800W of continuous power, ATX 3.1 / PCIe 5.1 compliance and four native 12V-2×6 connectors, it is designed for multi-GPU workstations, AI and rendering systems and other high-load setups running on 230V mains.
| Model | SF-2800F14HP |
| Series | Leadex Titanium |
| Continuous power | 2800W |
| Efficiency | Cybenetics Titanium (230V), ≥93% to <95% overall |
| Intel design guide | ATX 3.1, EPS 12V v2.92 |
| PCIe | PCIe 5.1, native 12V-2x6 |
| AC input | Single voltage 230V design, 200–240Vac, 15A, 50/60Hz |
| PFC | Active PFC |
| Modular | Fully modular, all-black sleeved cables |

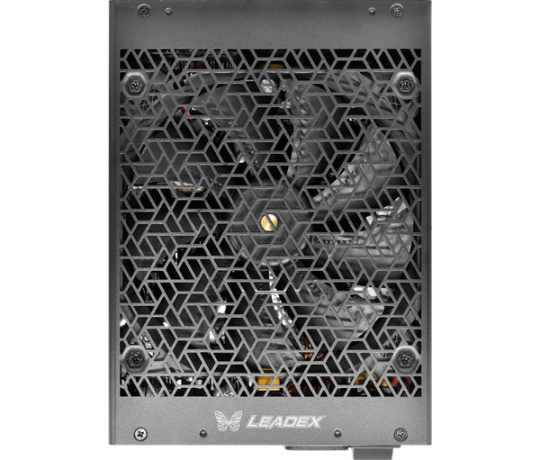

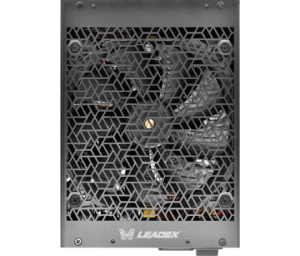

| Fan | 140mm dual ball bearing, Zero RPM / ECO mode |
| Capacitors | 100% Japanese 105°C |
| Operating temperature | Tested at 50°C |
| Protections | OVP / OCP / OPP / SCP / UVP / OTP / LVP / SLP |
| Dimensions | 200mm (L) x 150mm (W) x 86mm (H) |
| Environmental | Energy Star and EuP compliant, RoHS |

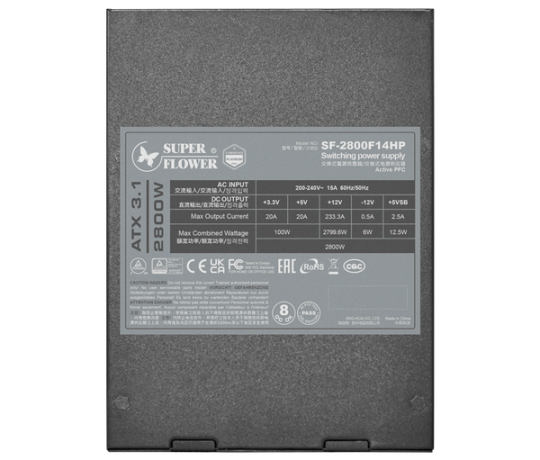

| Rail | Max. current | Max. power |
| +3.3V | 20A | 100W (combined +3.3V / +5V) |
| +5V | 20A | |
| +12V | 233.3A | 2799.6W |
| -12V | 0.5A | 6W |
| +5VSB | 2.5A | 12.5W |
| Total | 2800W |

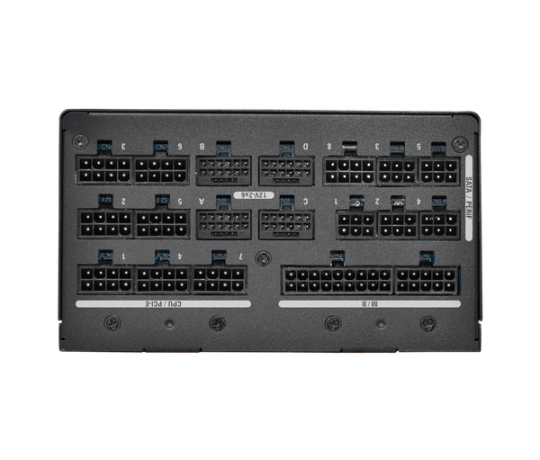

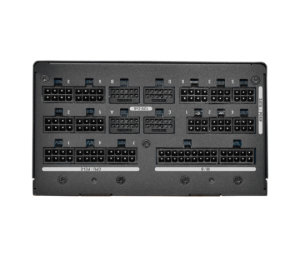

| Connector | Quantity |
| 20+4 pin ATX | 1 |
| 4+4 pin CPU (EPS) | 2 |
| PCI-E 6+2 pin | 6 |
| 12V-2x6 (12+4 pin, native) | 4 |
| SATA | 4 cables (4 connectors each) |
| 4-pin Molex | 1 cable (4 connectors) |
