Super Flower Legion HX 650W 80 Plus Gold SF-650P14XE(HX) ATX

The Super Flower Legion HX 650W (SF-650P14XE(HX)) is an 80 PLUS Gold ATX power supply for gaming and office PCs.

Features:

  • 650W continuous output, single +12V rail (54A)
  • 80 PLUS Gold certified: 87%+ efficiency at 20–100% load, 90%+ at 40–70% load

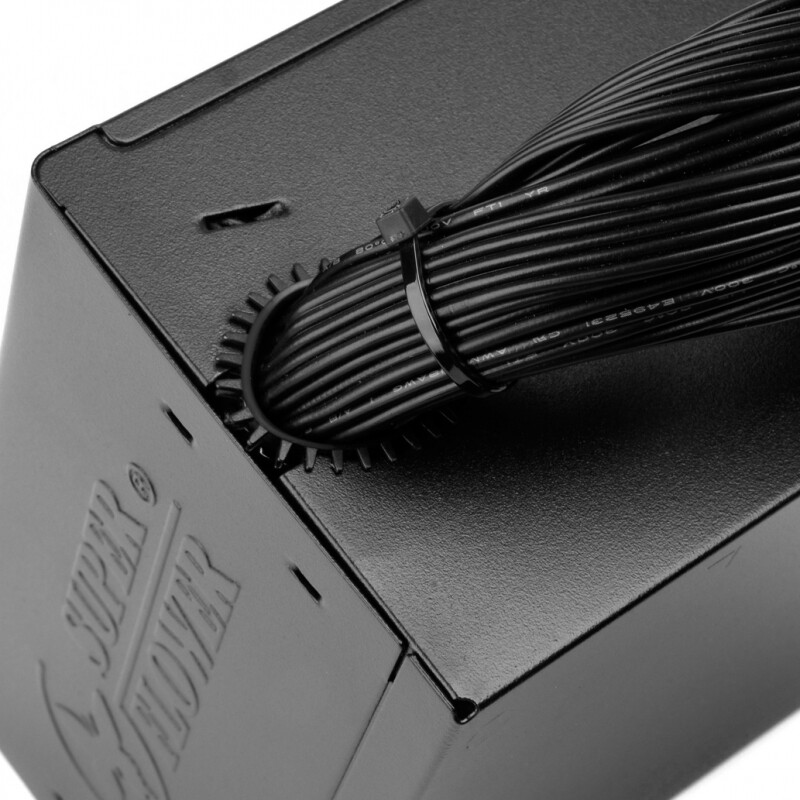

  • Non-modular design with fixed, all-black cables

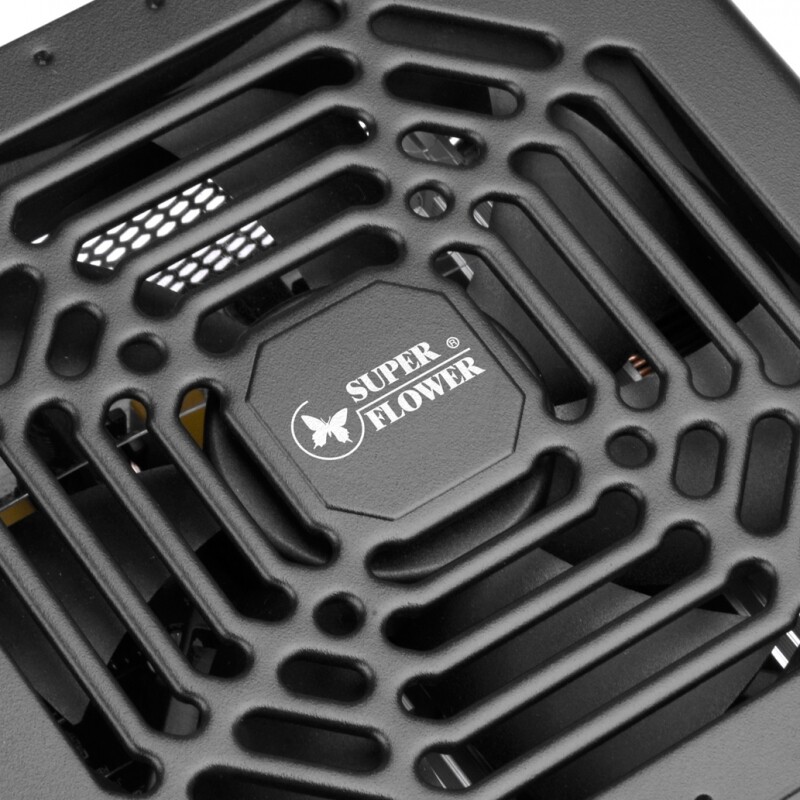

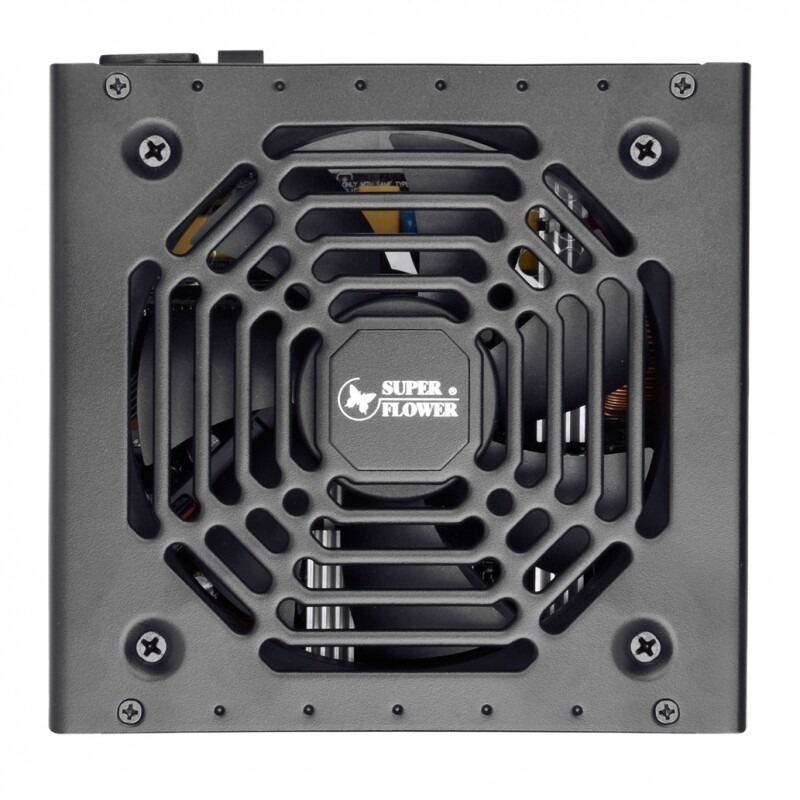

  • Quiet 120mm fan
  • Active PFC, 115–240V AC input
  • Protections: OVP / UVP / SCP / OPP / OTP / OCP (3.3V and 5V)
  • Connectors: 2x 4+4 pin CPU, 2x PCI-E 6+2 pin, 6x SATA, 4x Molex
SKU: SF-650P14XE(HX) Category: Tag: Brand:

Description

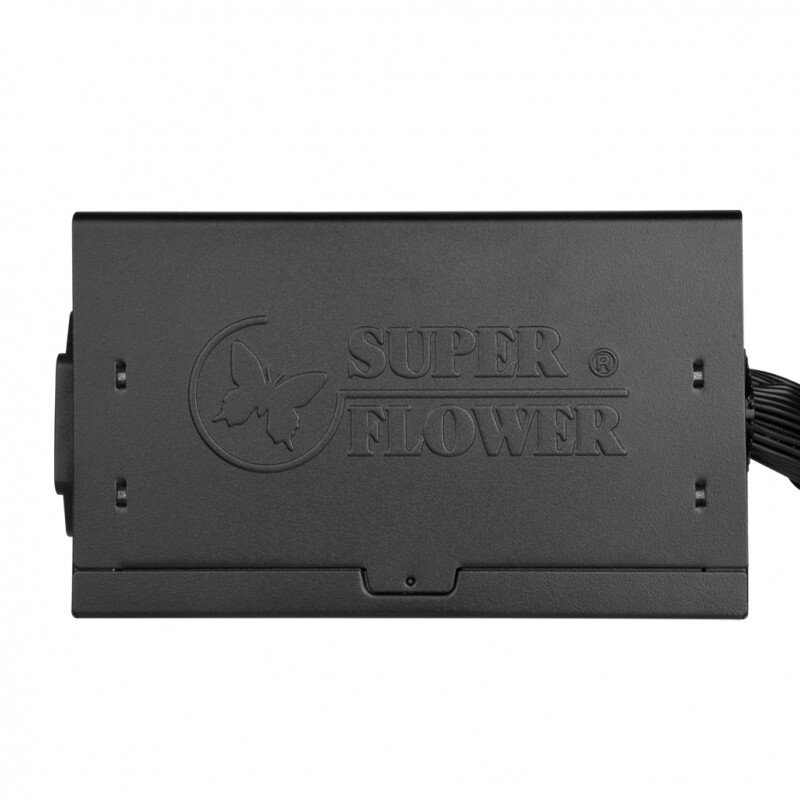

Super Flower Legion HX 650W (SF-650P14XE(HX))

The Super Flower Legion HX 650W is an 80 PLUS Gold ATX power supply from Super Flower’s Legion series, designed and manufactured in Taiwan. The non-modular design with fixed cables makes it a reliable and cost-effective choice. It is well suited for gaming PCs, workstations and everyday systems.

Specification

ModelSF-650P14XE(HX)
SeriesLegion HX
Continuous power650W
Efficiency80 PLUS Gold – 87%+ at 20–100% load, 90%+ at 40–70% load
Form factorATX

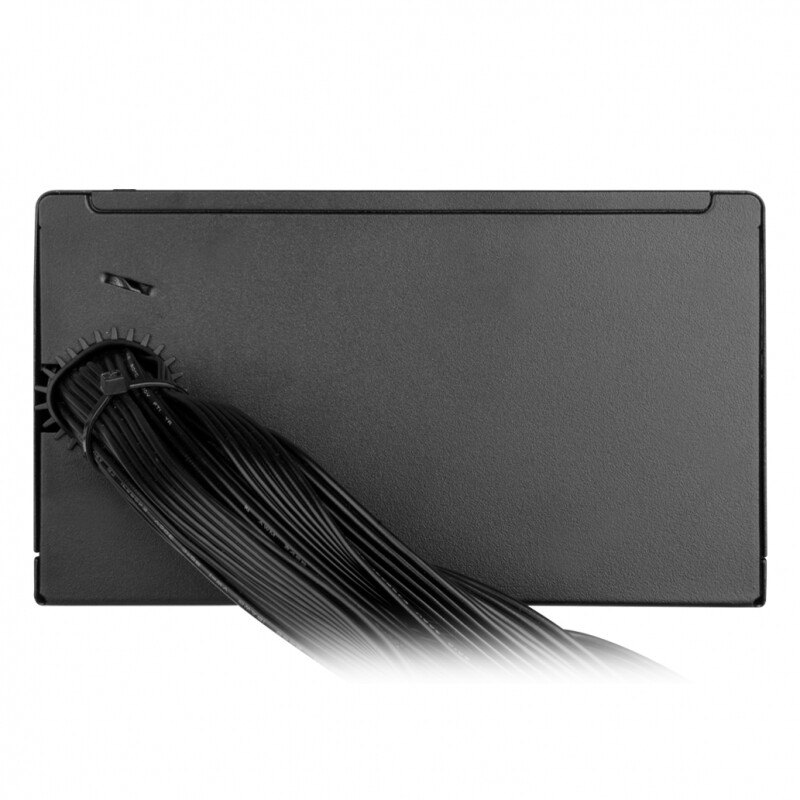

ModularNon-modular (fixed cables)

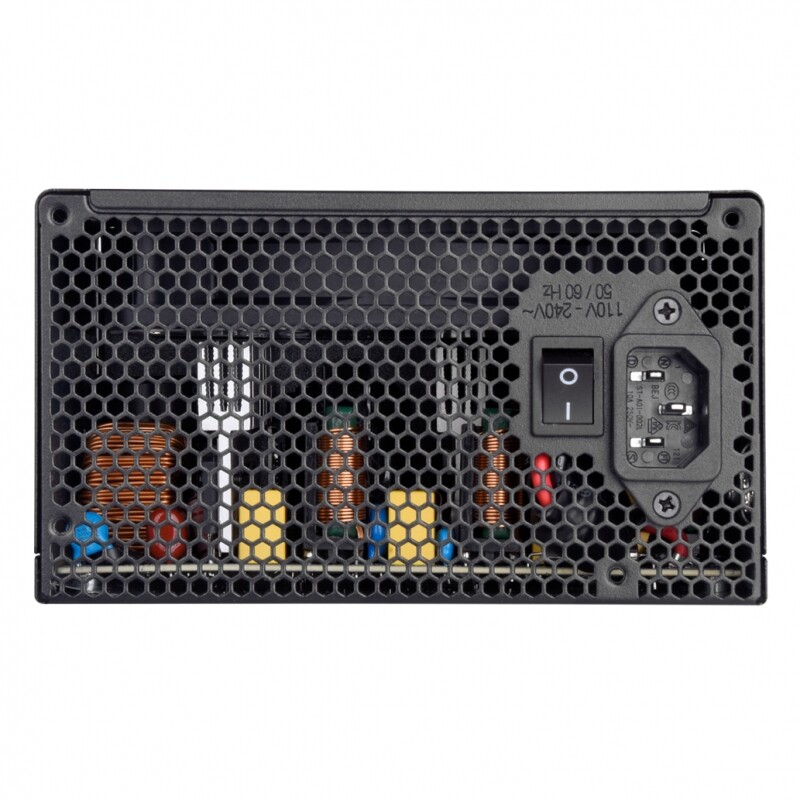

AC input115–240Vac, 10A, 60/50Hz
PFCActive PFC

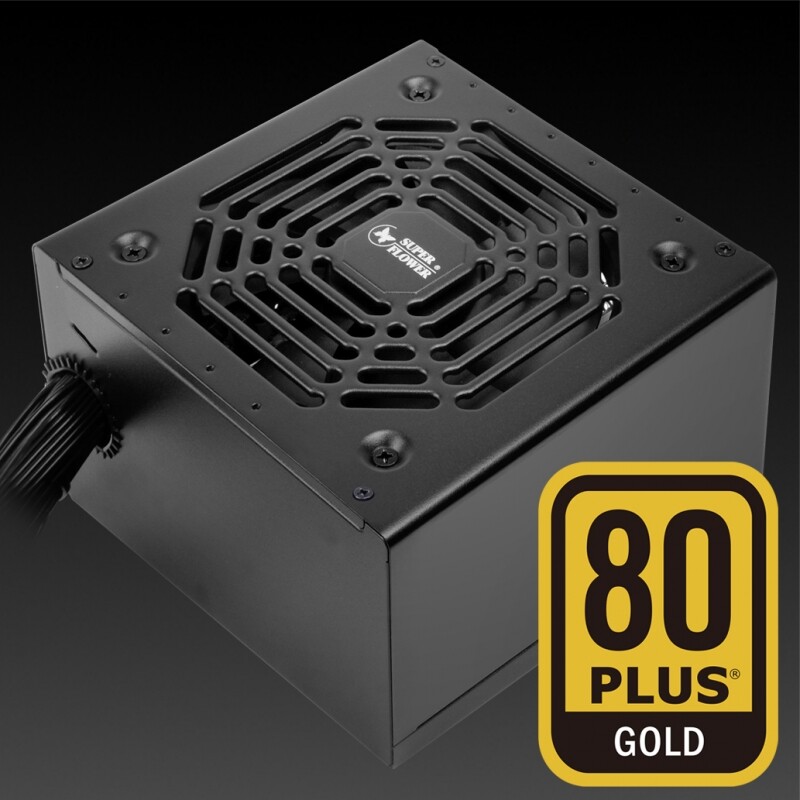

Fan120mm, 1 fan
ProtectionsOVP / UVP / SCP / OPP / OTP / OCP
ColorBlack
EAN4711213446313

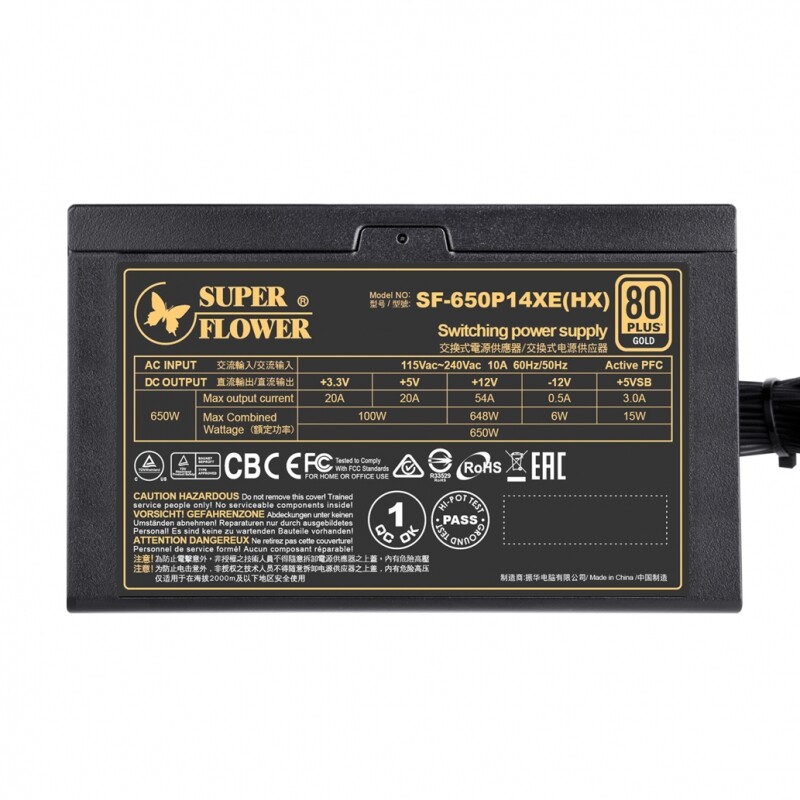

DC Output:

RailMax. currentMax. power
+3.3V20A100W (combined +3.3V / +5V)
+5V20A
+12V54A648W
-12V0.5A6W
+5VSB3.0A15W
Total650W

Safety:

  • TÜV Rheinland (cTUVus, Bauart) / CB / CE / FCC / RCM / BSMI R33529 / RoHS / EAC

Cable

ConnectorQuantity
20+4 pin ATX1
4+4 pin CPU (EPS12V)2
PCI-E 6+2 pin2
SATA6
4-pin Molex4
