Super Flower Legion GX 650W 80 Plus Gold SF-650P14XE(GX) ATX

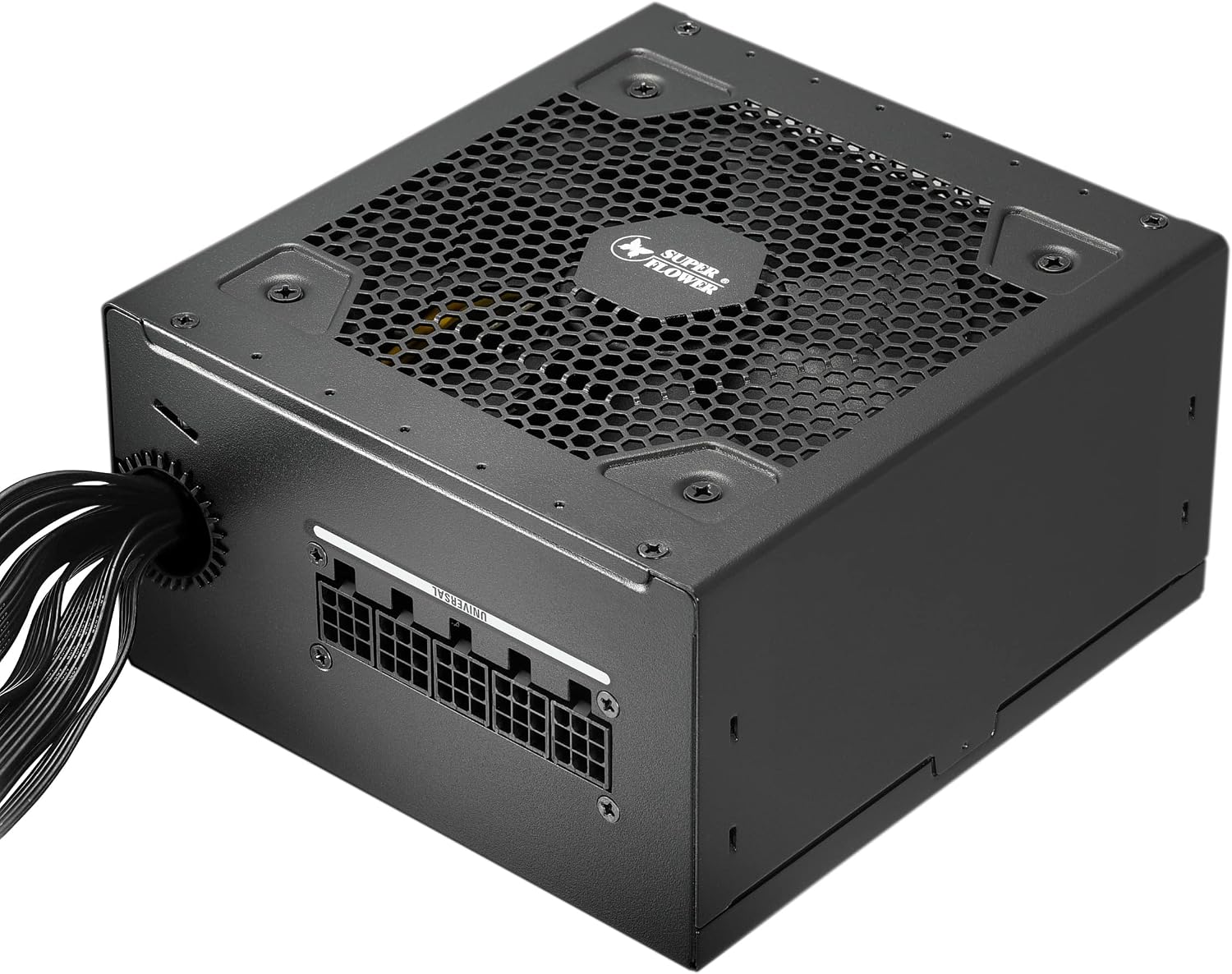

The Super Flower Legion GX 650W (SF-650P14XE(GX)) is a semi-modular 80 PLUS Gold ATX power supply for gaming and office PCs.

Features:

  • 650W continuous output, single +12V rail (54A)

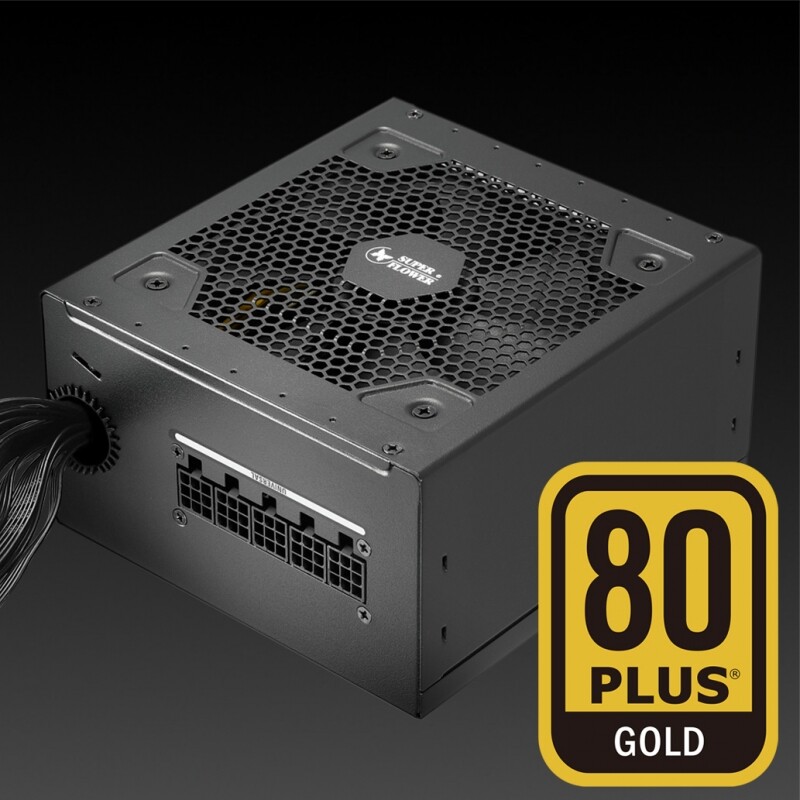

  • 80 PLUS Gold certified: 87%+ efficiency at 20–100% load, 90%+ at 40–70% load

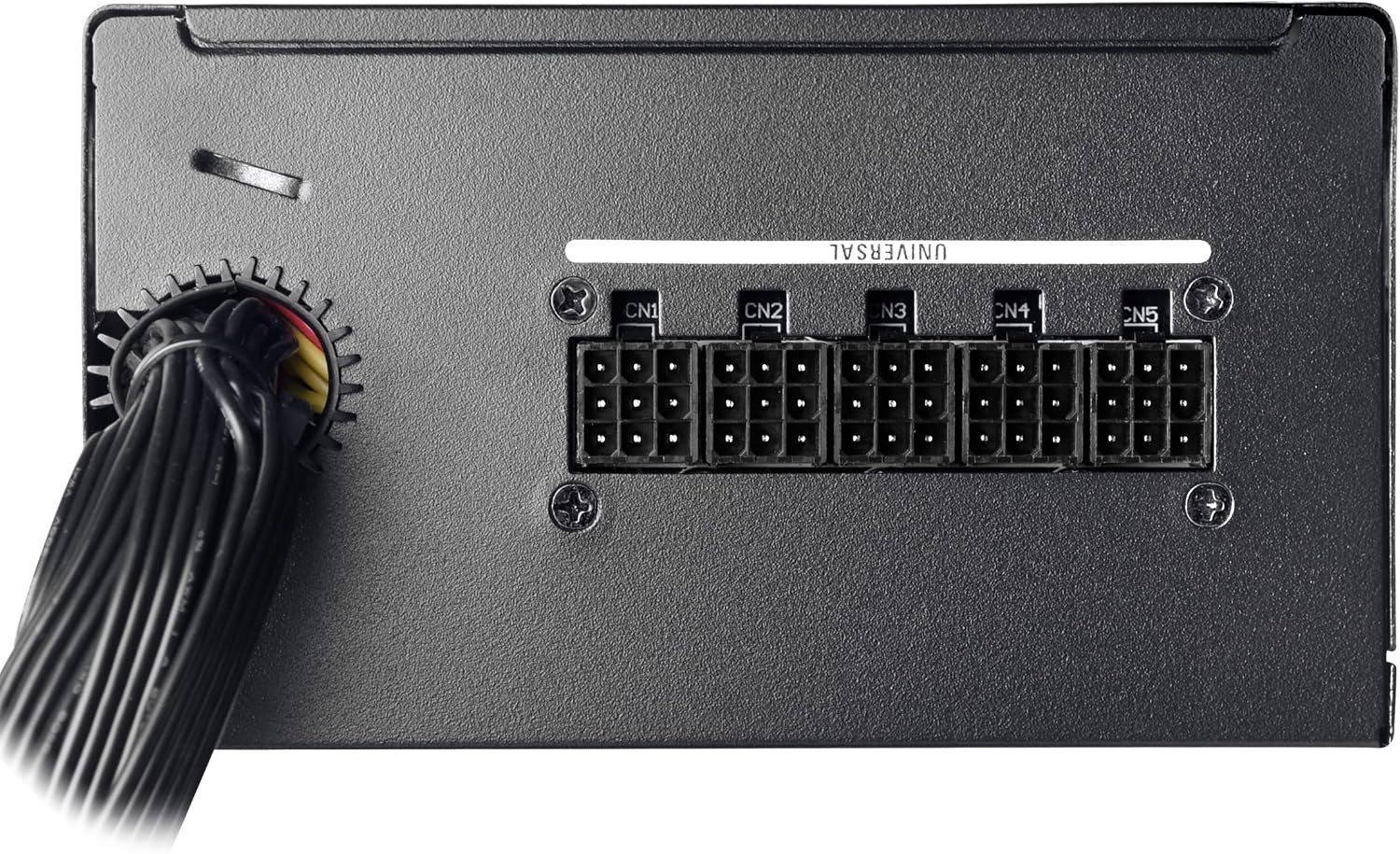

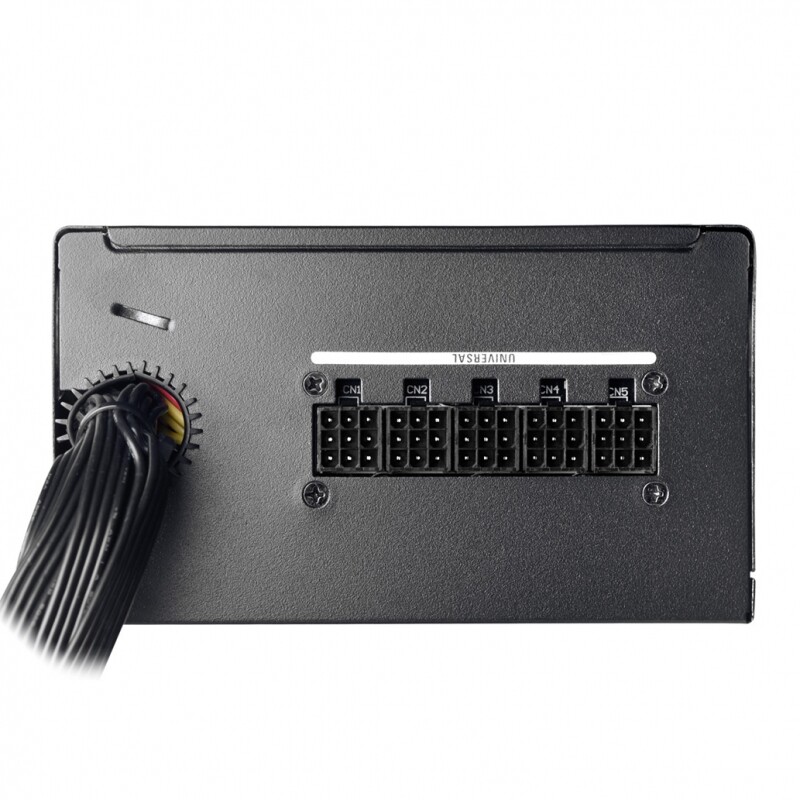

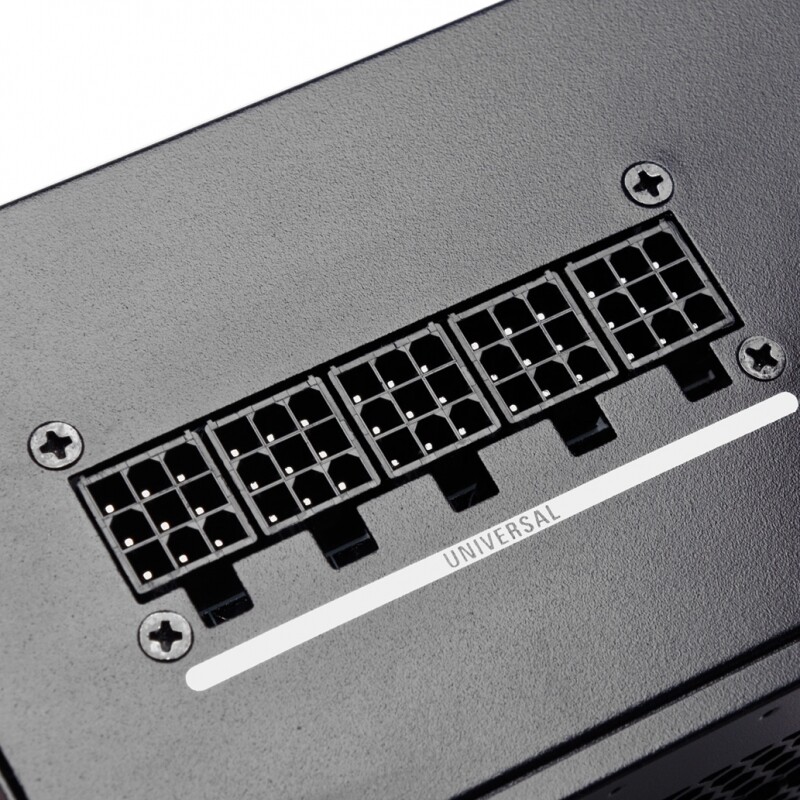

  • Semi-modular cabling – only connect the cables you need
  • Quiet 120mm fan
  • Active PFC, 115–240V AC input
  • Protections: OVP / UVP / SCP / OPP / OTP / OCP (3.3V and 5V)
  • Connectors: 2x 4+4 pin CPU, 2x PCI-E 6+2 pin, 6x SATA, 4x Molex
SKU: SF-650P14XE(GX) Category: Tag: Brand:

Description

Super Flower Legion GX 650W (SF-650P14XE(GX))

The Super Flower Legion GX 650W is an 80 PLUS Gold ATX power supply from Super Flower’s Legion series, designed and manufactured in Taiwan. Thanks to its semi-modular design, only the cables actually needed have to be connected, which keeps the case tidy and improves airflow. It is well suited for gaming PCs, workstations and everyday systems.

Specification

ModelSF-650P14XE(GX)
SeriesLegion GX
Continuous power650W
Efficiency80 PLUS Gold – 87%+ at 20–100% load, 90%+ at 40–70% load
Form factorATX
ModularSemi-modular

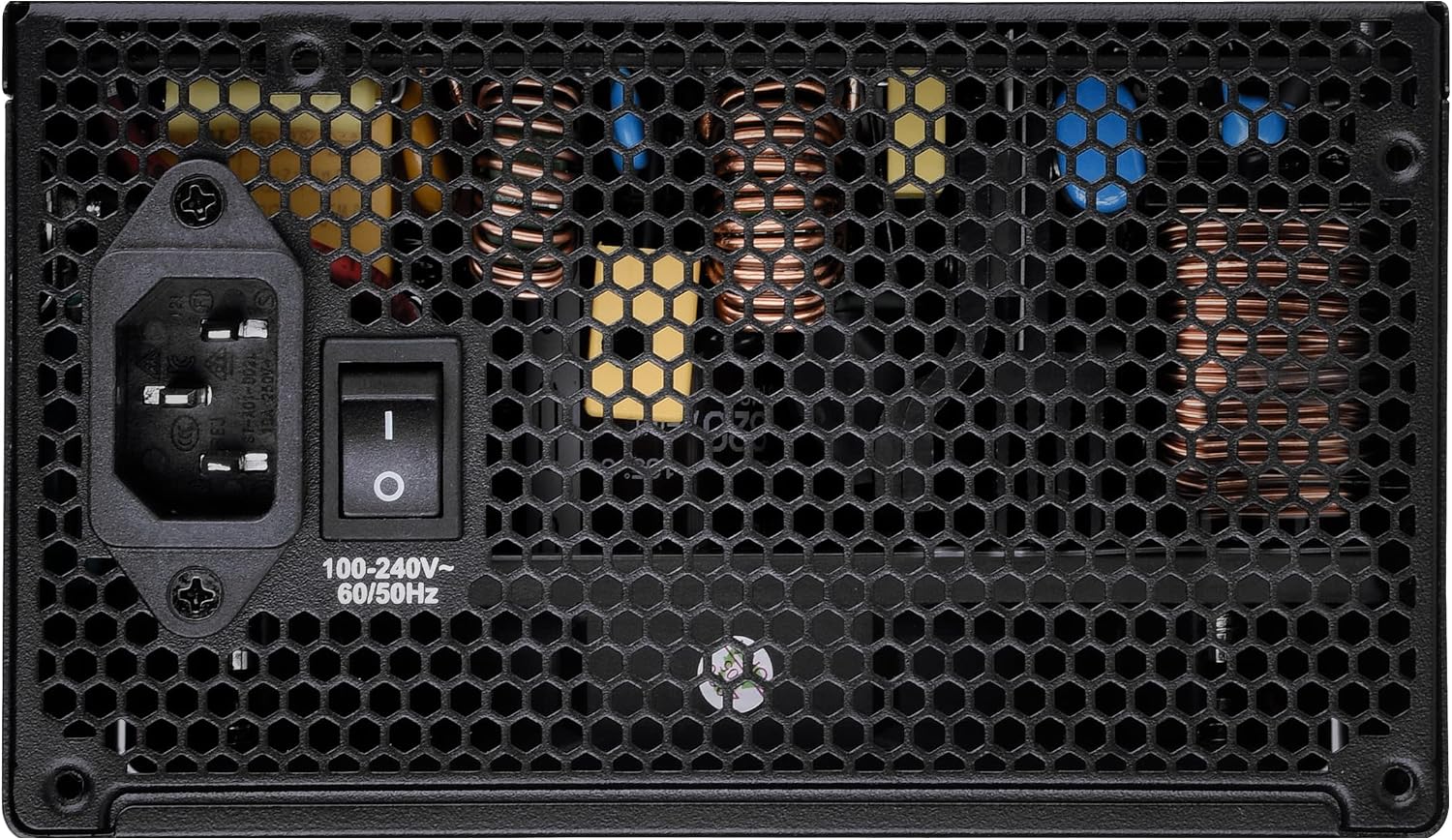

AC input115–240Vac, 10A, 60/50Hz
PFCActive PFC

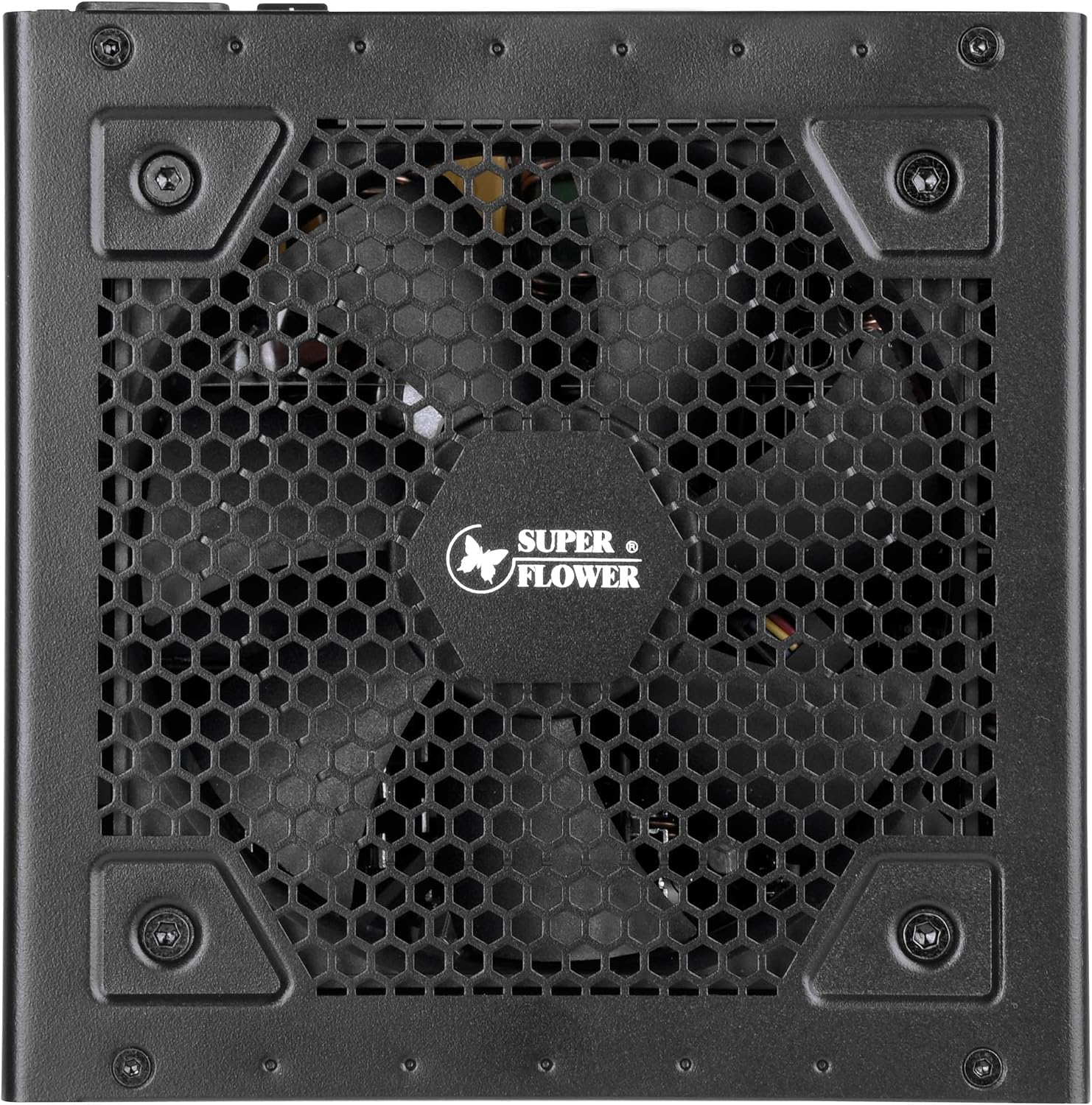

Fan120mm, 1 fan
ProtectionsOVP / UVP / SCP / OPP / OTP / OCP
ColorBlack
EAN4711213446276

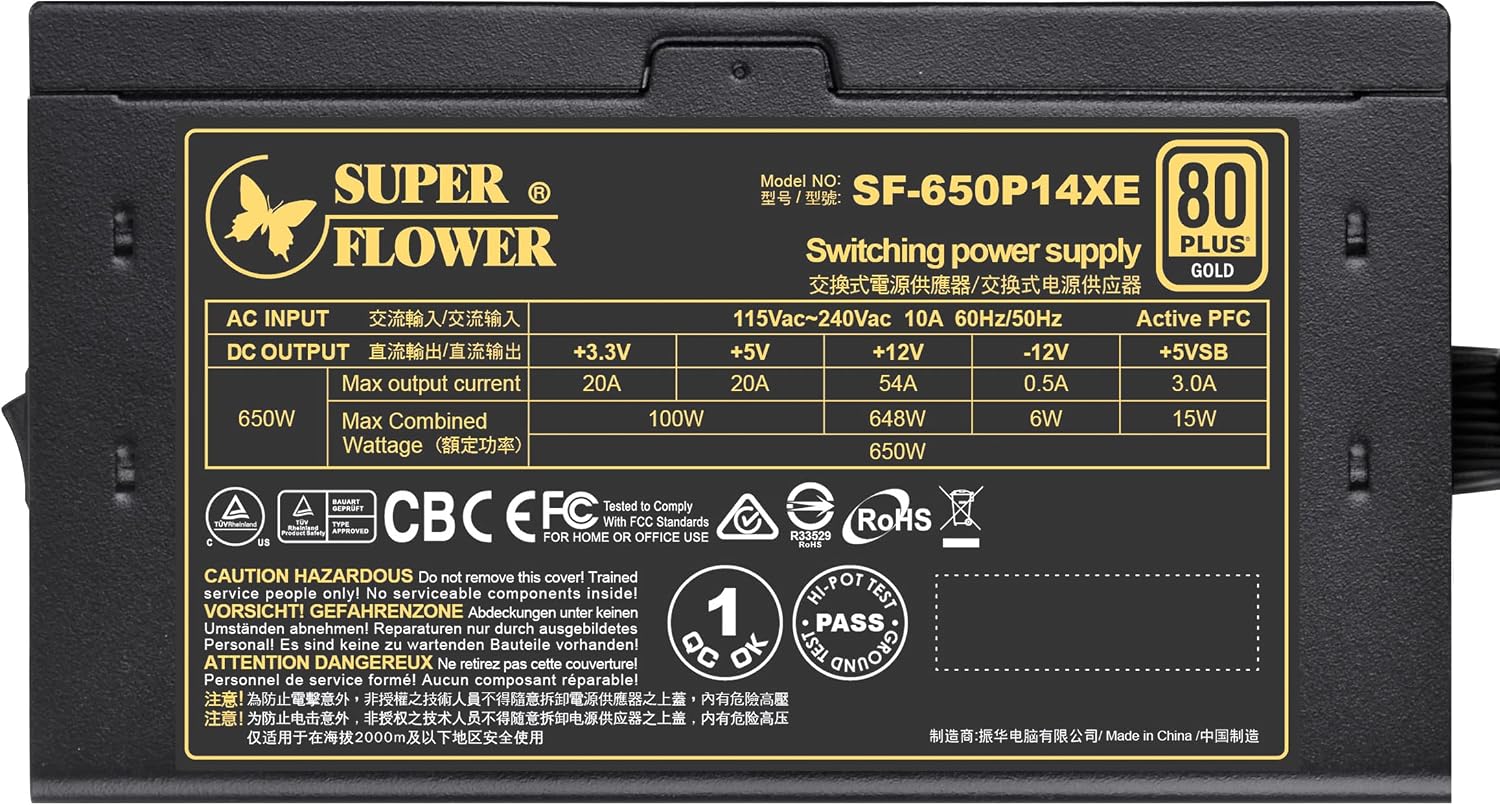

DC Output:

RailMax. currentMax. power
+3.3V20A100W (combined +3.3V / +5V)
+5V20A
+12V54A648W
-12V0.5A6W
+5VSB3.0A15W
Total650W

Safety:

  • TÜV Rheinland (cTUVus, Bauart) / CB / CE / FCC / RCM / BSMI R33529 / RoHS

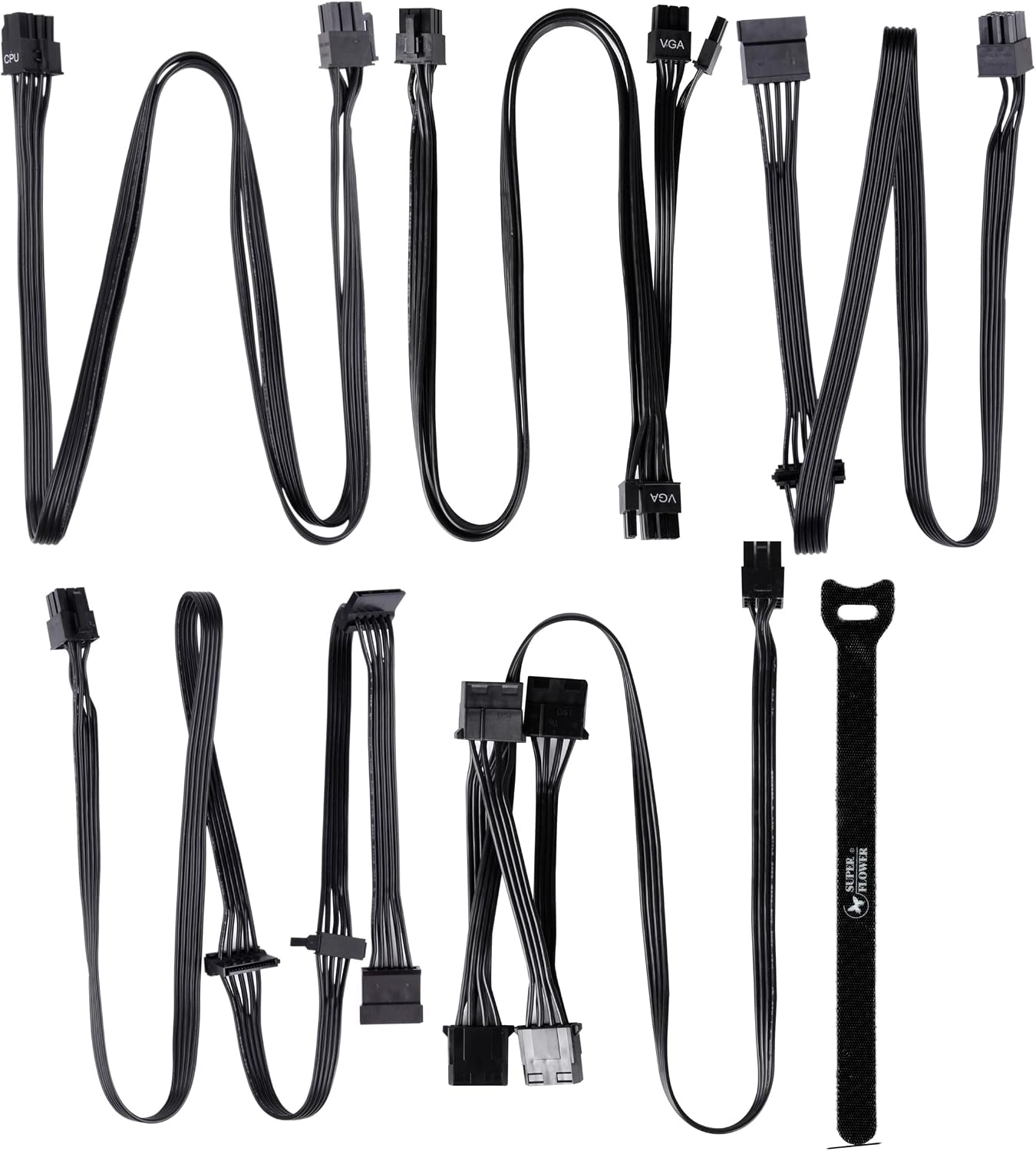

Cable

ConnectorQuantity
20+4 pin ATX1
4+4 pin CPU (EPS12V)2
PCI-E 6+2 pin2
SATA6
4-pin Molex4
