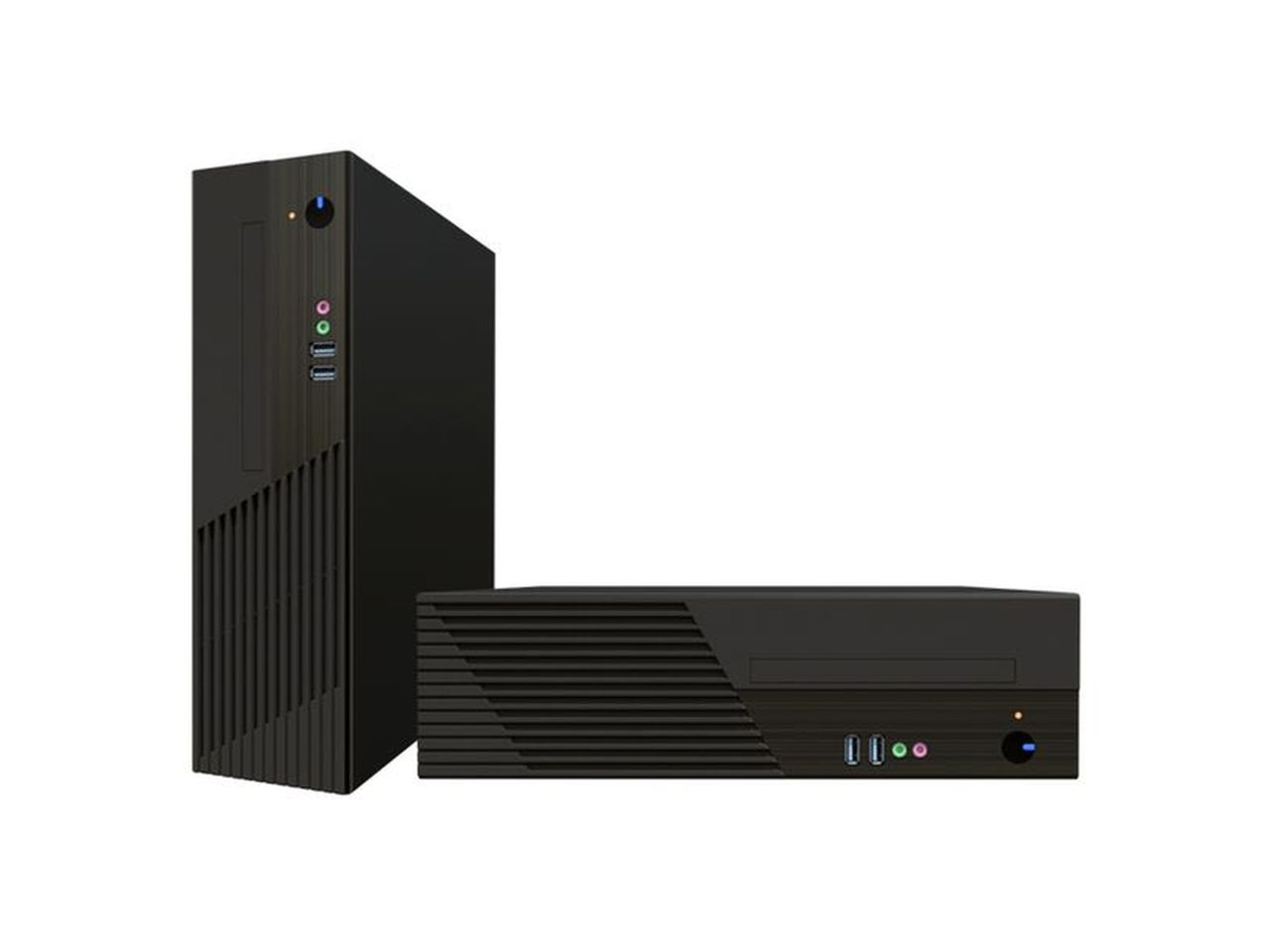

YY-7900 Yeong Yang 9L compact Micro ATX case

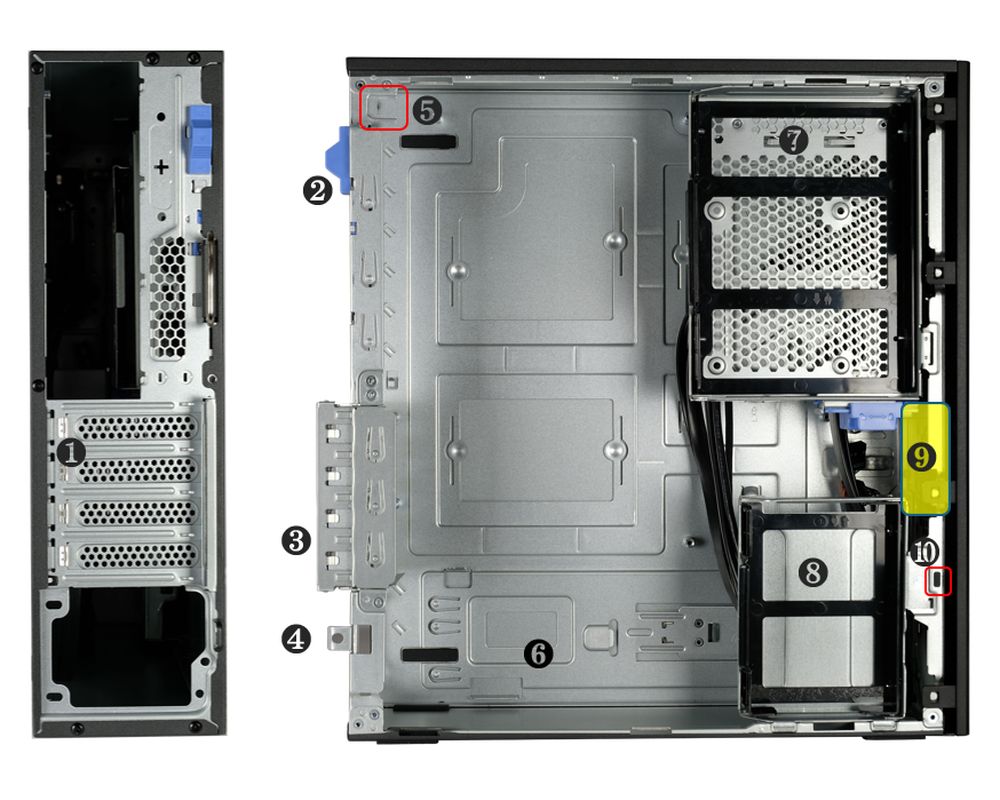

YY-7900 Yeong Yang 9L compact case – interior with tool-less design features

YY-7900 Slim Desktop

Available on request – contact us for availability and lead time.

The Yeong Yang YY-7900 9L compact case is a slim micro ATX chassis with tool-less assembly, standard TFX power supply support, 75mm CPU cooler clearance and room for graphics cards up to 270mm.

Features:

  • Micro ATX or Mini ITX motherboard and TFX PSU in only 9L volume
  • Tool-less auto lock, tool-less PCIe card bracket and screwless drive brackets
  • 4 x low profile PCIe slots, GPU length up to 270mm
  • CPU cooler clearance up to 75mm
  • 2 x USB 3.0 Gen 1 + HD audio, Type-C and SD card reader optional
  • Camlock, Kensington lock and optional intrusion switch
  • 6cm front cooling fan (optional)
Categories: , Brand:

Description

Specifications:

Case dimension325mm W x 291mm D x 92mm H (8.7L, chassis)
325mm W x 298mm D x 92mm H (8.8L, with bezel)
Motherboard configurationStandard Micro ATX, Mini ITX
Drive configuration
  • 1 x slim ODD (9.5mm, screw-less)
  • 1 x 3.5" HDD or 1 x 2.5" HDD (screw-less)
  • 1 x 2.5" HDD/SSD (screw-less)
CPU Clearance Zone75mm
GPU LengthUp to 270mm
Expansion Slots4 x low profile PCIe slots, tool-less card bracket
Front PanelPower switch, Reset switch, Power LED, HDD LED
2 x USB 3.0 Gen 1 + HD Audio (Type-C optional)
SD card reader (optional)
SecurityCamlock, Kensington lock, intrusion switch (optional)
MaterialsABS, SGCC 0.6mm sheet metal; recyclable, RoHS compliant
ColorBlack
Optional Power SupplyTFX PSU
Optional KitsChassis intrusion switch, 60 x 60 x 15mm fan (front-mounted)
