YY-7701 Slim Desktop

Available on request – contact us for availability and lead time.

The Yeong Yang YY-7701 8L compact case is a slim micro ATX chassis with a honeycomb front panel, standard TFX power supply support and room for a 3.5″ HDD, a 2.5″ SSD and a slim ODD.

Features:

  • Only 8L volume (325 x 273 x 90 mm) for standard Micro ATX or Mini ITX motherboards
  • Standard TFX power supply
  • Honeycomb front panel disguises the ventilation holes
  • Slim ODD, 1 x 3.5″ or 2.5″ HDD plus up to 2 x 2.5″ HDD/SSD
  • 4 x tool-less low profile expansion slots
  • Front USB, audio and Type-C, USB 3.0 and SD card reader optional
  • Optional front cooling fan and air partition on request
Categories: , Brand:

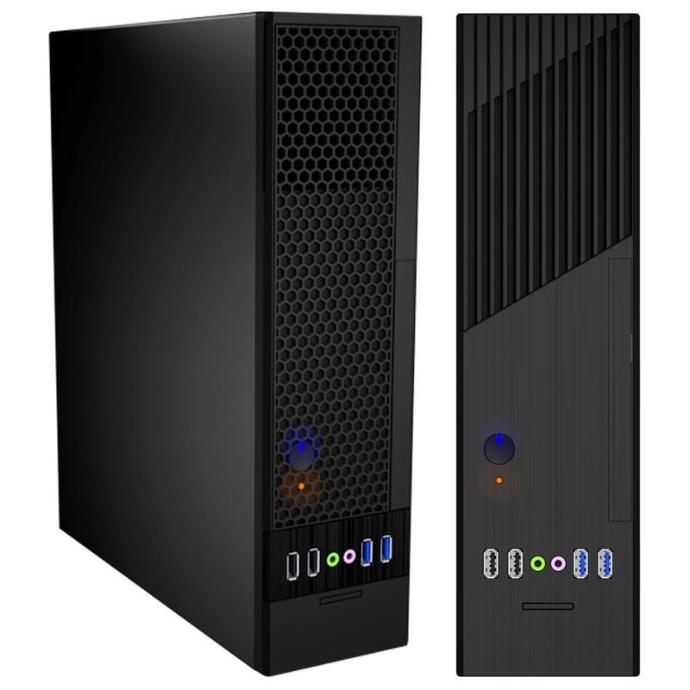

YY-77 Series – more versions

The YY-7701 shares its 8L compact chassis (325 x 273 x 90 mm, Micro ATX, TFX PSU) with the YY-7702, which has a modern front panel for business applications. Both versions are available on request. Click an image to enlarge it.

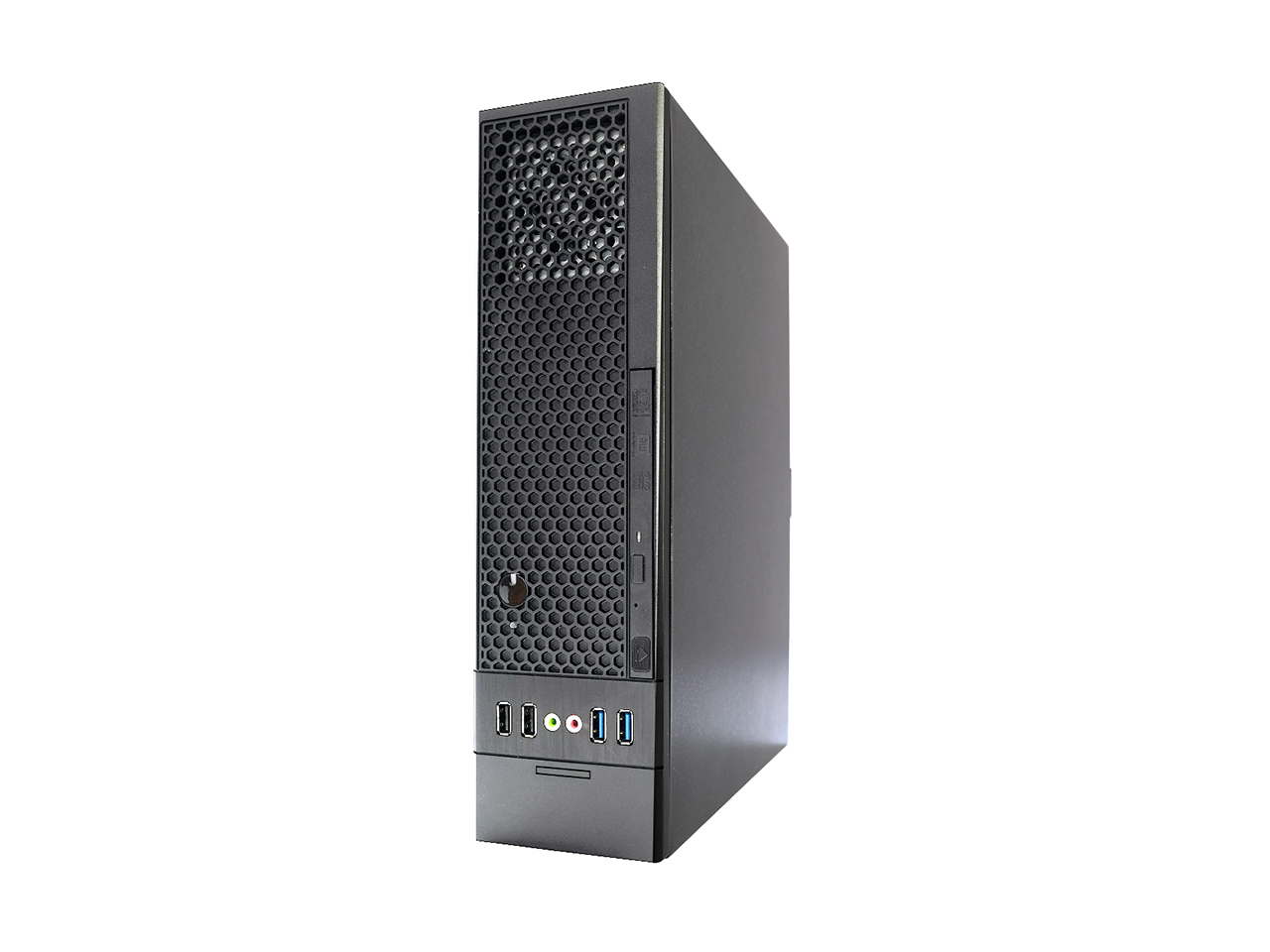

YY-7701 Yeong Yang 8L compact Micro ATX case – honeycomb front panelYY-7701Honeycomb front panelOn request

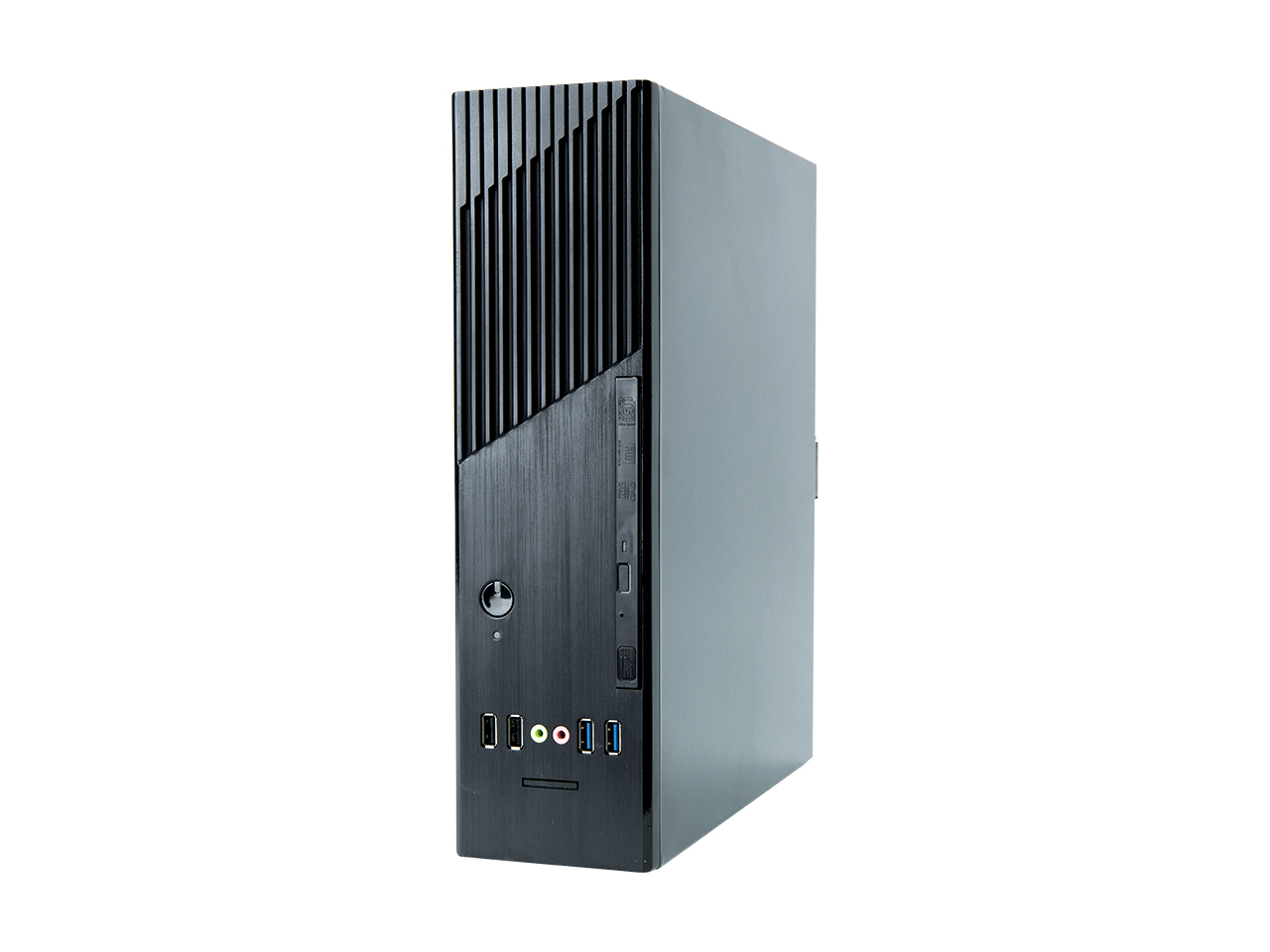

YY-7702 Yeong Yang 8L compact Micro ATX case – modern business front panelYY-7702Modern business front panelOn request

Request a quote

Description

Specifications:

Case dimension325mm W x 263mm D x 90mm H (7.69L, chassis)
325mm W x 273mm D x 90mm H (7.99L, with bezel)
Motherboard configurationStandard Micro ATX (9.6" x 9.6"), Mini ITX
Drive configuration
  • 1 x slim ODD (9.5mm, screw-less)
  • 1 x 3.5" HDD (screw-less) or 1 x 2.5" HDD (screw)
  • 1 x 2.5" HDD (screw-less) + 1 x 2.5" HDD (screw)
CPU Clearance Zone41mm
Expansion Slots4 x low profile PCI slots (tool-less)
Front PanelPower switch, Power LED, HDD LED
USB 2.0 / Audio (USB 3.0 optional) / Type-C
SD card reader (optional)
MaterialsABS, SGCC 0.6mm sheet metal; recyclable materials, RoHS compliant
ColorBlack
Optional Power SupplyTFX PSU
Optional KitsInternal speaker with AMP board, chassis intrusion switch, 60 x 60 x 10mm fan (front-mounted)
