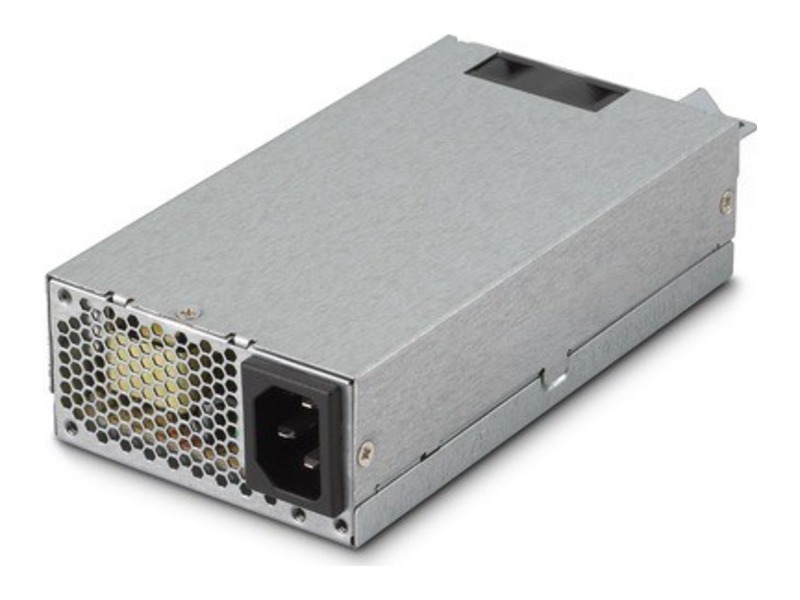

Fortron FSP180-50FEB Flex ATX 180W industrial power supply

Fortron FSP180-50FEB Flex ATX 180W

The Fortron FSP180-50FEB is a 180W Flex ATX industrial power supply with active PFC and 80 PLUS Bronze efficiency for IPC controllers, networking, storage and automation systems.

Features:

  • 180W Flex ATX power supply for industrial applications
  • 80 PLUS Bronze efficiency, active PFC
  • Wide range input 90 – 264Vac
  • Low ripple & noise
  • OCP, OVP, OTP and short circuit protection on all outputs, resettable shutdown
  • 4cm fan, 100% burn-in at 50°C ambient, 100% hi-pot tested
  • Operating up to 50°C and 5,000m altitude, MTBF 100,000 hours
  • Compliant with EN 62368 (CB 62368-1, CB 60950-1)
SKU: FSP180-50FEB Category: Tag: Brand:

Description

Specifications:

Form factorFlex ATX
Output power180W
Efficiency80 PLUS Bronze
Input90 – 264Vac, 47 – 63Hz, active PFC
Input current: 115Vac @ 3A, 230Vac @ 1.5A
Output rating+3.3V: 8A, +5V: 12A, +12V: 12A, -12V: 0.3A, +5Vsb: 2A
+3.3V and +5V combined max. 61W
Ripple / Noise+3.3V / +5V / +5Vsb: 50mV, +12V / -12V: 120mV
ProtectionOver current (OCP), over voltage (OVP), over temperature (OTP), short circuit protection on all outputs, resettable shutdown, line input fuse
Fan4cm fan
Hold-up time≥ 16ms (115V / 60Hz and 230V / 50Hz, 100% load)
Dimensions81.5mm W x 40.5mm H x 150mm L
EnvironmentOperating 0 – 50°C, storage -20 – 80°C, humidity up to 85% RH (operating) / 95% RH (storage) non-condensing, altitude up to 5,000m
ReliabilityMTBF 100,000 hours at 25°C, 100% burn-in at 50°C ambient, 100% hi-pot tested, vacuum impregnated transformer
ApplicationsIndustrial PC (IPC) controller, networking, storage systems, communication, automation
Safety approvalsCB 62368-1, CB 60950-1 (EN 62368 compliant)
