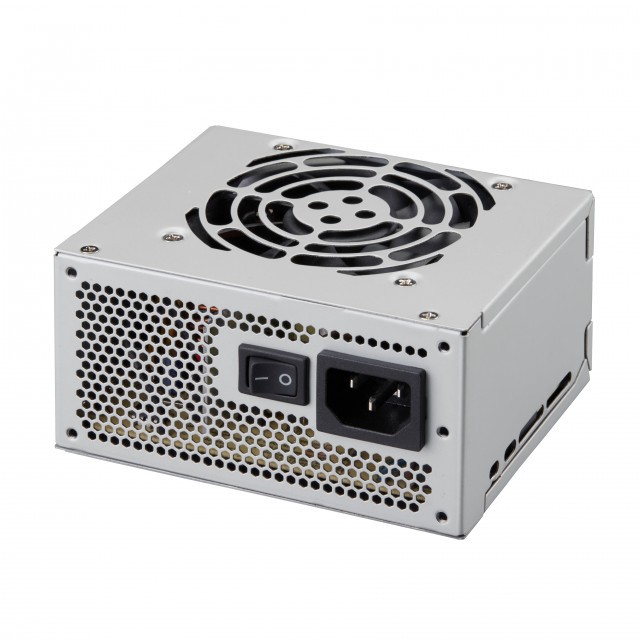

Fortron FSP350-50SAC SFX 350W 80 Plus Bronze power supply

Fortron FSP350-50SAC SFX 350W 80 Plus Bronze

The Fortron FSP350-50SAC is a 350W SFX power supply with 80 PLUS Bronze efficiency for compact PCs, small form factor systems and industrial applications.

Features:

  • 350W continuous output, single +12V rail (29.2A)
  • Intel PSDG SFX12V V3.42 compliant
  • 80 PLUS Bronze certified, up to 85% efficiency
  • Worldwide input voltage 100 – 240Vac, active PFC (0.99)
  • DC-to-DC design for better system compatibility
  • Smart fan speed control for ultra silent operation
  • OCP, OVP and OTP protection
  • Dimensions: 125mm x 100mm x 63.5mm
  • Safety: CB 62368, CB 60950, CE, TUV, cUL
SKU: FSP350-50SAC Category: Tag: Brand:

Description

Specifications:

Form factorSFX (Intel PSDG SFX12V V3.42)
Output power350W
Efficiency80 PLUS Bronze (up to 85%)
Input90 – 264Vac (100 – 240Vac rated), 50 – 60Hz
Input current: 115Vac @ 5A, 230Vac @ 2A
Output rating+3.3V: 20A, +5V: 20A, +12V: 29.2A (single rail), -12V: 0.3A, +5Vsb: 2.5A
+3.3V and +5V combined max. 85W
Ripple / Noise+3.3V / +5V / +5Vsb: 50mV, +12V / -12V: 120mV
PFCActive PFC, power factor 0.99
DesignDC-to-DC design, forward & D2D topology, smart fan speed control
ProtectionOver current (OCP), over voltage (OVP), over temperature (OTP)
Hold-up time≥ 16ms (115V / 60Hz and 230V / 50Hz)
Dimensions125mm L x 100mm W x 63.5mm H
EnvironmentOperating 0 – 40°C, storage -20 – 80°C, up to 90% RH non-condensing, altitude up to 2,000m
MTBF100,000 hours at 25°C, max. output load
Safety approvalsCB 62368, CB 60950, CE, TUV, cUL
