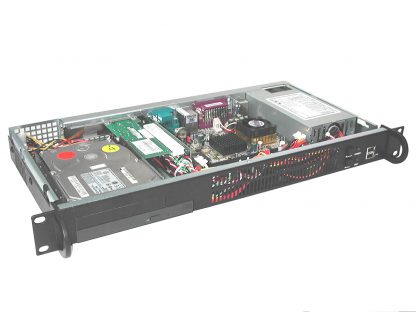

GHI-106 Guanghsing 19″/1U Rackmount

Features:

  • Guanghsing 19″ 1U Rackmount Case
  • 1 Horizontal Low Profile PCI Slot (With Riser Card)
  • 2x USB
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity

Description

Specifications:

Case dimension483mm W x 220mm D x 44mm H
Motherboard configurationMini ITX  (Max. 6.7" x 6.7")
Standard I/O ShieldVIA EPIA V Mini ITX
Drive configuration
  • 1 x Slim 5.25"

  • 1 x Slim FDD, 1 x 2.5"HDD (Option A)

  • 1 x 3.5" HDD (Option B)

System cooling fans2x (40 x 20mm = 7CFM ea.) Optional
Riser CardGHP-R0110
Gross Weight3.8kgs/8.4lbs
Optional Power SupplyFlex ATX up to 220W, Max Depth 150mm, Width: 80mm
Optional KitsTelescopic SlidersRiser Card
