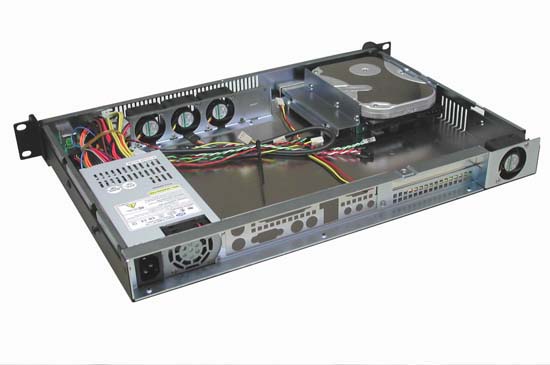

GHI-108 Guanghsing 19″/1U Rackmount


  • Guanghsing 19″ 1U Rackmount Case
  • 1 Horizontal PCI Slot (With Riser Card)
  • 2x USB
  • Power ON/OFF, System Reset
  • LEDs for Power ON/OFF, HDD Activity



Case dimension483mm W x 300mm D x 44mm H
Motherboard configurationMini ITX MB (Max. to 6.7" x 6.7")
Standard I/O ShieldVIA EPIA V Mini ITX
Drive configuration
  • 1 x Slim 5.25"

  • 1 x 3.5" HDD

  • 1 x 2.5" HDD

System cooling fans3x (40 x 20mm = 7CFM ea.), 1x (40 x 20mm) Optional
Riser CardGHP-R0110
Gross Weight6.2kgs/13.7lbs
Optional Power SupplyFlex ATX up to 200W (Rear Installation), Max. Depth 150mm
Optional KitsTelescopic SlidersRiser Card
