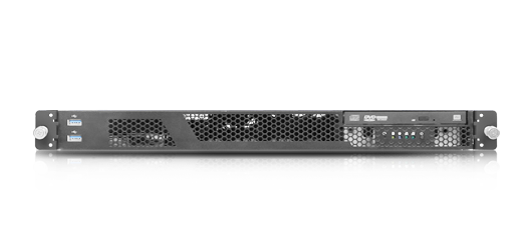

RM14300 Chenbro 19″/1U Rackmount


  • Chenbro 19″ 1U Rackmount Case
  • Supports front and rear motherboard I/O access
  • Tool-less(RM14300-EZ) or non Tool-less(RM14300) HDD carrier for concurrent 3.5″ and 2.5″ HDD
  • Flexible HDD configurations via optional HDD carriers
  • Anti-vibration 40mm PWM fan (up to thickness 48mm)



Case dimension406.7mm W x 438.5mm D x 43.2mm H
Motherboard configurationMicro ATX
Standard I/O Shield1U, For Intel S1200SPO/S1200SPL/S1200SPS
Drive configuration
  • 2 x 3.5" HDD

  • 2 x 2.5" HDD

  • optional: Slim ODD

System cooling fans3x 40mm(T=28mm, up to 48mm), PWM
Riser Card1U, 1 Slot, PCI-e 8x
PCI-e 16x, Gen 3, Rev. D0
Gross Weight6.22kgs/13.7lbs
Optional Power SupplyFlex ATX up to 200W (Rear Installation), Max. Depth 150mm
Optional KitsTelescopic SlidersRiser Card
