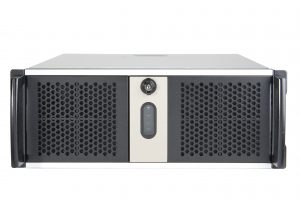

RM423 Chenbro 4U 17.5″ Compact Chassis


  • Chenbro 4U 17.5″ Compact Industrial Server Chassis
  • Rotatable 5.25″ cage to keep device in horizontal position
  • Card retainer to hold LP and full height add-on cards
  • Available for rackmount and stand-alone installation
  • 2nd 3 x 5.25″ device cage to maximize flexibility (Option)



Case dimension430mm W x 445mm D x 176mm H
Motherboard configurationCEB (Max. 12" x 10.5)
ProcessorIntel / AMD DP Quad
SecurityIntrusion Switch, Keylock on front door
Drive configuration
  • 3 x 5.25"

  • 1 x 3.5" FDD

  • 4 x 3.5" HDD

  • 1 x Slim ODD

Metal MaterialSGCC
Plastic Material TypeABS-HB
Metal Thickness1.2mm
System cooling fans1 x 12mm PWM, 2 x 80mm (Option)
Expansion Slot7 or 15 Full Height
Front PanelPower On/Off, System Reset, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, 2 x USB 2.0
Net Weight/Gross Weight9.5kg/12.3kg
Optional Power Supply450-1000W (PS/2) or MRW-5450V (Mini Redundant)
Optional KitsSK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SK51201 (3.5" bay to 2 x 5.25" hot-swap HDD bays), 20" Sliding Rail, 80mm fans15 slot rear windowsFoot Stand
