RM216 Chenbro 2U Open-bay Server

Features:

  • Chenbro 2U Open-bay Server Chassis
  • Support motherboard size up to 12″ x 13″

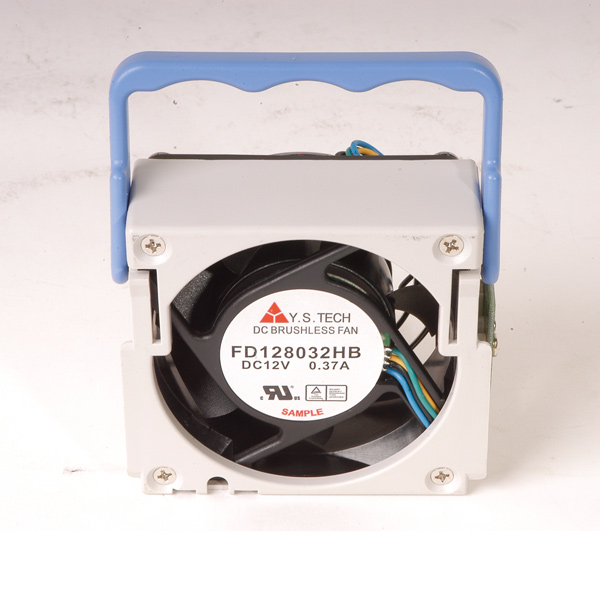

  • Middle non hot-swap fan modules
  • Support 3-slot riser and 6-slot low profile rear windows
  • Tool-less design on 5.25″ device installation
  • Support 2U single and 1+1 redundant PSU

Description

Specifications:

Case dimension430mm W x 660mm D x 88mm H
Motherboard configurationEATX (Max. 12" x 13") SSI EEB 3.0
ProcessorIntel / AMD DP Quad
SecurityIntrusion Switch
Drive configuration
  • 4 x 5.25"

  • 2 x 3.5"

Metal MaterialSGCC
Metal Thickness1.2mm
System cooling fans4 x 80mm (T=32mm), 2 x 40mm (T=28mm) (option)
Rear Window6 Low Profile Slot or 3 x Full Height
Front PanelPower On/Off, System Reset, Alarm Reset, Power LED, 1 x HDD Activity, 2 x LAN Activity LED, 1 x Fan Failure & Overhead, 2 x USB 2.0
Net Weight/Gross Weight8.8kg/12.7kg
Optional Power Supply2U Single P2G-6510P or 1+1 Redundant C2W-5620V
Optional KitsSK32303 (3 x 3.5" HDD Module with 6Gb/s SATA backplane), SK41101 (1 x ODD bay to 1 x internal 3.5" HDD/FDD bay), SK41202 (1 x ODD bay to 1 x slim ODD bay + 1 x internal 3.5" HDD/FDD bay), 26" Sliding Rail
