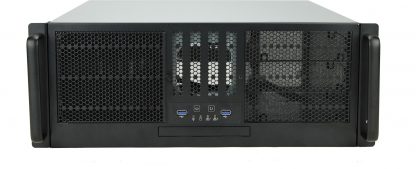

YY-R44500 / 4U Rackmount


  • Yeong Yang 4U Rackmount Chassis
  • Supports M/B up to 12″ x 10.5″
  • Anti-vibration designed driver cage
  • Optional PCI card retainer for different height add-on cards
  • 80mm rear fan x 2, Optional 120mm front fan with filter



Case dimensionwithout bezel           : 430mm W x 176mm H x 446mm D
with optional bezel  : 430mm W x 176mm H x 469mm D
Motherboard configurationATX (Max. 12" x 10.5")
ProcessorIntel / AMD DP Quad
SecurityIntrusion Switch, Keylock on front door
Drive configuration
  • 3 x 5.25" ODD
  • 1 x slim ODD
  • 4 x 3.5" HDD
  • 1 x 2.5" HDD
Metal MaterialSGCC
Plastic Material TypeABS-HB
Metal Thickness1.2mm
System cooling fans2 x 80mm rear, 1 x 80mm front (optional), 1 x 120mm (optional)
Expansion Slot7 Full Height
Front PanelPower Switch, Reset Switch, 1 x Power LED, 1 x HDD LED, 2 x LAN LED, 2 x USB 2.0 (default) or 2 x USB 3.0 (option)
Net Weight/Gross Weight9.2kgs /11.2kgs
Optional Power Supply450-1000W (PS/2) or MRW-5500V (Mini Redundant)
Optional KitsSK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SK51201 (3.5" bay to 2 x 5.25" hot-swap HDD bays), 22" Sliding Rail, 80mm fans, Foot Stand
