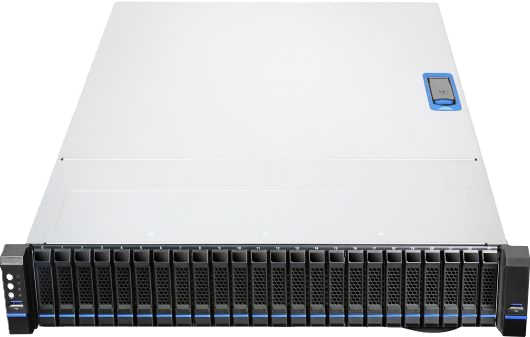

RM23824 Chenbro 2U Storage Server Chassis

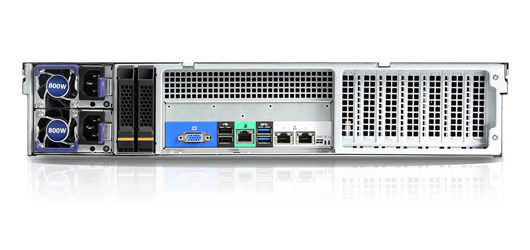

RM23824 Chenbro 2U Storage Server Chassis – view 2

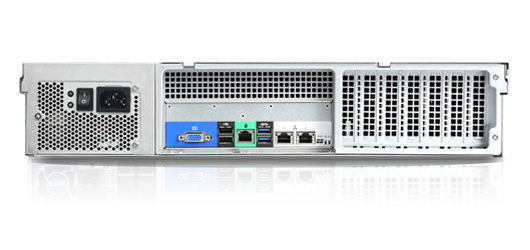

RM23824 Chenbro 2U Storage Server Chassis – view 3

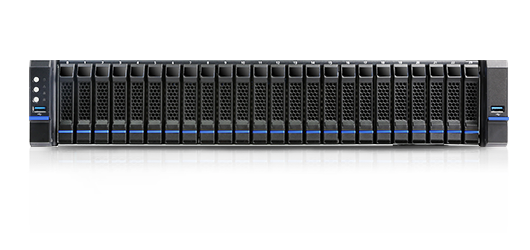

RM23824 Chenbro 2U Storage Server Chassis – view 4

RM23824 Chenbro 2U Flexible Server/Storage Chassis

The Chenbro RM23824 is a 2U dual-socket server/storage chassis with 24 x 2.5″ hot-swap bays for E-ATX motherboards.

Features:

  • Chenbro 2U Dual-Socket General Purpose Flexible Server/Storage Chassis
  • Support motherboard size up to 12″ x 13″ (E-ATX)
  • 24 x 2.5″ hot-swap drive bays, tool-less HDD trays
  • Optional rear 2-bay 2.5″ HDD/SSD cage for OS or cache drives
  • 12Gb/s Mini-SAS HD backplane, with or without expander
  • Up to four 80mm hot-swap fans with smart speed control
  • 7 x low profile or 3 x full height expansion slots
  • Support 1+1 redundant CRPS (80 PLUS Platinum) or 2U single PSU
Categories: , Tags: , Brand:

Description

Specifications:

Case dimension660mm D x 438mm W x 87mm H (26" x 17.2" x 3.5")
Motherboard configurationE-ATX (12" x 13")
ProcessorDual Socket
Drive configuration
  • 24 x 2.5" Hot-swap HDD/SSD
  • Optional: 2 x 2.5" Hot-swap HDD/SSD cage (rear) for OS or cache drives
  • Tool-less HDD trays
Support Backplane12Gb/s Mini-SAS HD backplane, with or without expander (smart fan control)
Expansion Slots7 x Low Profile or 3 x Full Height
System cooling fans3 x 80mm (up to 4), PWM, middle, hot-swap / non hot-swap
Front PanelPower On/Off, System Reset, UID, 2 x USB 3.0
LED IndicatorsPower status, 2 x LAN Activity, UID, HDD status, System status
SecurityIntrusion Switch (option)
Power Supply1+1 Redundant CRPS (80 PLUS Platinum) or 2U Single
Optional KitsSlide rails: 23.2" (non tool-less, max. 20.6 kg), 23.6" (tool-less, max. 18.8 kg) or 32.8" (tool-less, max. 30.8 kg)
Net Weight/Gross Weight11.5kg/14kg
